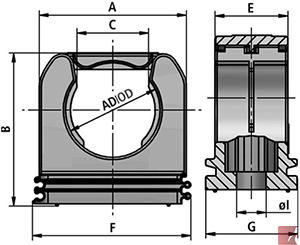

RQS 54.5 mm OD Corrugated Conduit/Tubing Mounting Clip with Built-In Retaining Cap

Part#: 5030.020.248

Description

54.5 mm OD Corrugated Conduit Mounting Clip with Built-In Hinged Retaining Cap for medium to heavy duty applications, made of polyamide

Easy single bolt installation. Internal raised rib keeps conduit from sliding in clip

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations

One piece conduit clip with attached, hinged cap for medium to heavy duty conduit installations.
Ribbed internally to lock into conduit corrugation, keeps conduit from sliding in clip.
Single 6.5 mm mounting through hole.
C-profile bar compatible.
Can be installed side-by-side with all other sized clips using RQHV clip anchor.

Need a different size?: Browse other sizes of RQS one piece Corrugated Conduit Mounting Clip with attached Hinged Cap

Material:
