RQA Grey Corrugated Conduit End Sleeve
5030.021.036

Description

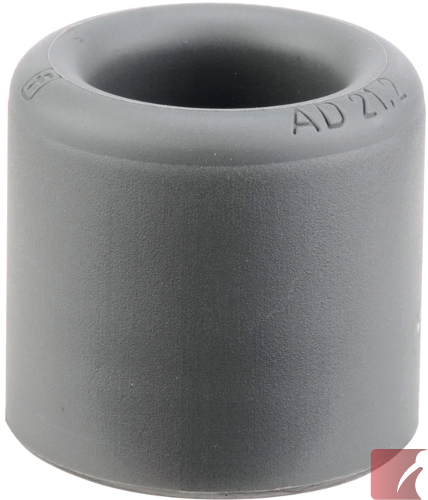

42.5 mm OD ROHRflex® Grey conduit end sleeve, made of polyamide

-40ºC to +115ºC

Details:

  • The end sleeve protects cables & wires and/or air lines from the sharp edge of a cut conduit.

Material:

  • made of PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents

Use with ROHRflex® corrugated conduits

Dimensions: (see attached drawing)

φ I mm: 33.8
φ B mm: 44.5
D mm: 25.0



Specifications

Color:
Grey
Weight:
0.0064 kg
Package Quantity:
25

Datasheet

Certifications

Alternate SKU Numbers

5030-021-036 | 5030021036 | 5030 021 036 | 5030_021_036 | 5030/021/036 | 5030,021,036 | 5030+021+036
