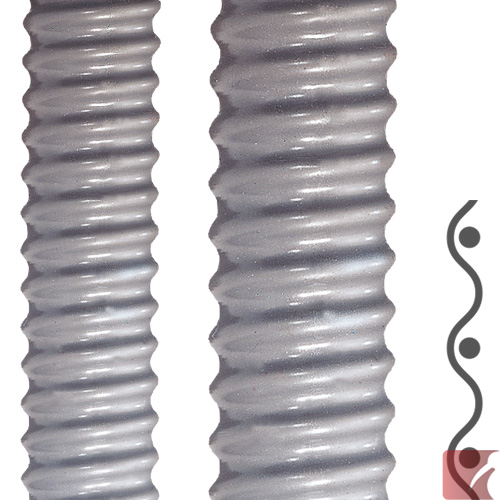

AIRflex-KUW-PVC-AS 15.0 x 19.0 mm Spiral PVC liquidtight conduit,10 metre coil
2031.101.015

Description

OD 19.0 mm AIRflex® Spiral PVC liquidtight conduit for wire, cable and guide chain applications

Special small 10 metre coil.

IP 68 - liquid tight & air tight

-25ºC to +90ºC ... 100ºC short term

Material:

  • helical coiled PVC plastic conduit
  • spring steel wire helix with PVC sheathing
  • approved to DIN EN IEC 61386-23

Properties:

  • extremely flexible
  • widely resistant to solvents and acids
  • free of silicone and cadmium
  • good application temperature range
  • suitable for vacuum applications

Applications:

Excellent cable & wire protection for all applications including optoelectronics and guide chain solutions.

Other applications include: machine building, railway industry, shipbuilding and automation.

Need fittings? Check here:

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.12 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
19.0 mm
Conduit ID:
15.0 mm
Static Bend Radius:
15 mm
Dynamic Bend Radius:
40 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05

Alternate SKU Numbers

2031-101-015 | 2031101015 | 2031 101 015 | 2031_101_015 | 2031/101/015 | 2031,101,015 | 2031+101+015
