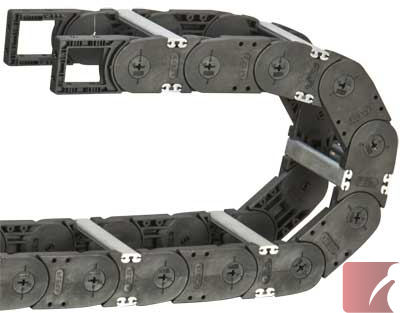

This 300 x 49 mm PH10 Series Heavy Duty Cable Carrier from Flexa features a robust, aluminum cross-bar and plastic

side link plate construction. It's engineered to deliver an easy-glide, low-noise, long-life operation.

With a Radius of 200 mm, this easy-loading guide chain is usable in both horizontal and vertical cable carrier applications.

PH10 guide chains are prestressed to ensure the longest possible free carrying length.

Specific Data for Model / Article # PH10-300A-20F:

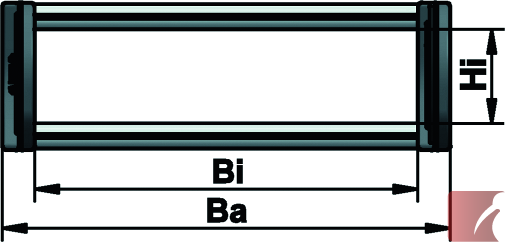

• Inner Width (Bi) - 300 mm
• Inner Height (Hi‌‌) - 49 mm
• Radius - 200 mm
• Bow Length - 800 mm
• Outer Width (Ba) - 334 mm
• Number of separators - 16
• Delivered in sections of 1 metre = 10 links

Need a different Radius? See other 300 mm Width PH10 guide chains with Radii ranging from 100 mm to 300 mm

Need a different Width PH10 carrier chain? Follow these links:

• PH10 guide chains with width = 75 mm, Radii ranging from 100 mm to 300 mm
• PH10 guide chains with width = 100 mm, Radii ranging from 100 mm to 300 mm
• PH10 guide chains with width = 150 mm, Radii ranging from 100 mm to 300 mm
• PH10 guide chains with width = 200 mm, Radii ranging from 100 mm to 300 mm
• PH10 guide chains with width = 250 mm, Radii ranging from 100 mm to 300 mm

Need PH10 guide chain Accessories?

• PH10 Series guide chain Separators
• PH10 Series guide chain Mounting End Brackets
• PH10 Series guide chain Layer Stays for upper & lower cable levels

Material:

• Side link plates: Polyamide 6 GFK Plastics (glass fibre reinforced)
• Frame bar: Aluminum
• Temperature rating: -40ºC to +135ºC

PH10 Series Technical Data:

• Inner height Hi‌‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ 49 mm
• Outer height Ha‌                     77 mm
• Number of chain links/meter ‌10

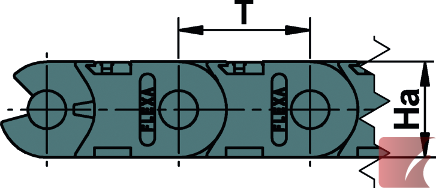

• Pitch T‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌  100 mm
• Guide chain length                 approx. L/2 + BL
• Total height                           approx. 2xR + Ha

• Free carrying length‌ ‌max.‌      4600 mm
• Travel standard L max. ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌  50 m
• Travel in channel max.          100 m
• Load max.‌                             35 kg/m
• Speed max.‌                           10 m/sec
• Acceleration max.‌                 15 m/sec²
• Tensile strength max.           2200 N
• Separator thickness              4.0 mm

Properties:

• quick & easy to install with standard tools
• optimized wall thickness/interior ratio
• heavy duty guide chain
• loadable across entire inner chain width
• extended life design

Applications:

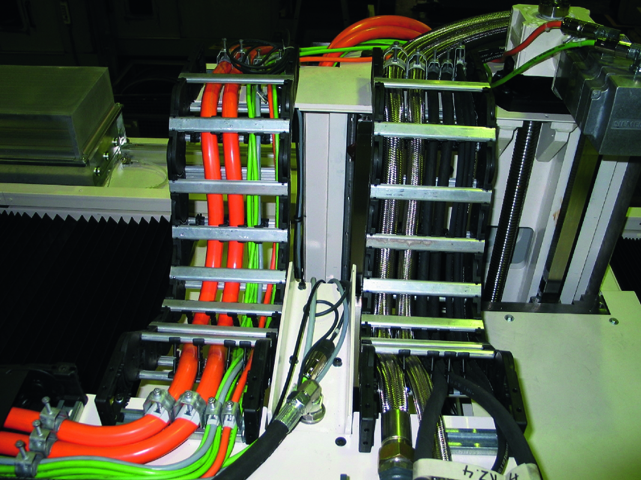

• Excellent wire protection and cable guidance for robotics, mining equipment, logging machinery,
• sawmilling & woodworking machinery, passenger rail car & bus construction, shipbuilding and
• general machine / automation wiring and material handling equipment
• Cover and protect cables, wires, hydraulic & pneumatic hoses
