PL3-31-10F Width 31 mm & Radius 100 mm Flexatec PL3 Series Standard Duty Cable Carrier Guide Chain

Part#: 6023.031.010

Description

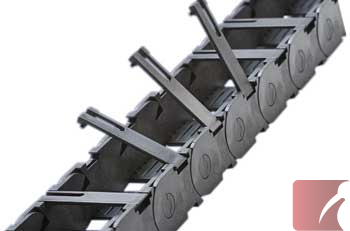

This 31 x 18 mm Flexatec PL3 Series Cable Carrier features a durable, highly stable construction coupled with easy glide,

low-noise, long life operation.

With a Radius of 100 mm, this inner loading guide chain, has easy to use, hinged snap-clip openings.

Model / Article # PL3-31-10F Specific Data:

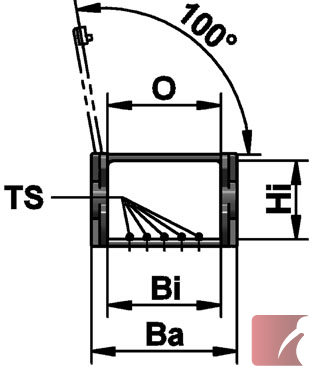

Inner Width (Bi) - 31 mm
Inner Height (Hi‌‌) - 18 mm
Radius - 100 mm
Outer Width (Ba) - 41 mm
Bow Length - 400 mm
Number of separators - 4
Delivered in sections of 1 metre = 31 links

Need a different Radius? See other 31 mm Width guide chains with Radii ranging from 35 mm to 100 mm

Need PL3 guide chain Accessories?

Material:

Polyamide 6 GFK Plastics
-40ºC to +135ºC

PL3 Series Technical Data:

Inner height (Hi‌‌) ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌18 mm

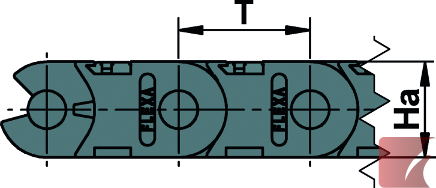

Outer height (Ha‌) 22 mm
Number of chain links / meter 31
Pitch (T‌) ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ 32 mm
Guide chain length approx. L/2 + BL
Total height approx. 2xR + 22 mm

Free carrying length‌ ‌max.‌ ‌ ‌ 1750 mm
Travel standard (L) max. ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌ 35 m
Travel in channel max. 60 m
Load max.‌ 4.0 kg/m
Speed max.‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ 10 m/sec
Acceleration max.‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌‌ ‌ 10 m/sec²
Tensile strength max. 13‌50 N
Separator thickness 1.25mm

Properties:

hinged openings, quick & easy to use
optimized wall thickness/interior ratio
economical
loadable across entire inner chain width
extended life design

Applications:

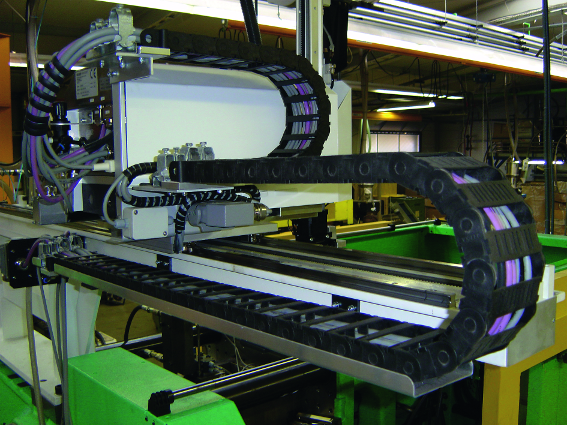

Excellent for robotics, general machine / automation wiring, wood machinery, material handling equipment
Use as needed to cover and protect cables, wires, hydraulic & pneumatic hoses
