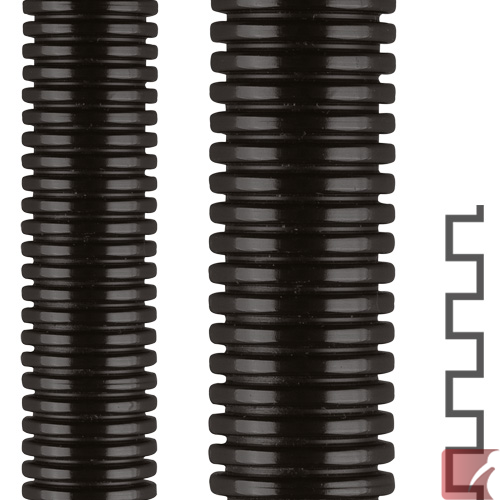

29.0 x 34.5 mm OD ROHRflex® - PA 6 Black Polyamide all plastic standard-walled, fine profile NW 29 tubing. Corrugated internally & externally

VO [UL94]

-40ºC to +115ºC ... short term to +150ºC

Material:

• Modified polyamide 6
• Black PA 6, Nylon

Properties:

• air and liquid-tight
• oil resistant against up to + 80ºC
• benzene resistant
• widely resistant to acids, solvents and cutting fluids
• free of silicone, cadmium, halogen
• self-extinguishing and flame retardant
• black version conduits are UV resistant and stabilized

Applications:

• Excellent for railway, bus, mass transit, and public transportation use
• General machine & automation wiring, robotic and automated systems, shipbuilding

Special Railway & Transit Vehicle Approvals:

• Railway approval EN 45545-2 (HL 3)
• Exceeds stringent ASTM E 162 and E 662 smoke & toxicity standards for mass transit vehicles
• International standards approved for transit vehicle use, see certifications below

Use with all FLEXAquick® conduit fittings, connectors and accessories
