PA6-S 10.0 x 13.0 mm ROHRflex black Corrugated nylon Conduit 10 metre coil
0233.209.110

Description

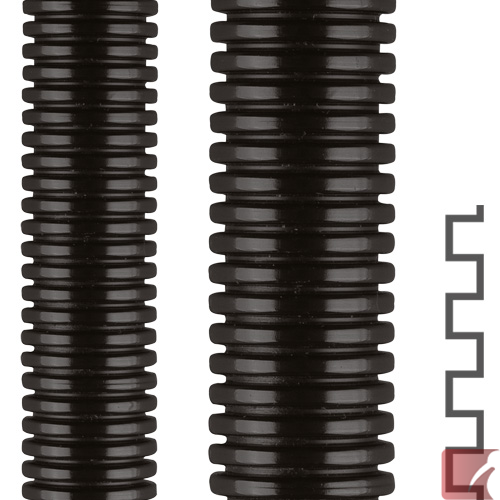

OD 13.0 mm ROHRflex® - PA 6 Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally

V2 [UL94]

-40ºC to +120ºC ... short term to +150ºC

Also available on a shorter 10 metre coil, click here part # 0233.209.010

Material:

  • Modified polyamide 6
  • Black PA 6, Nylon

Properties:

  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • self-extinguishing and flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • General machine, plant, & automation wiring; robotic and automated systems
  • Exterior use for railway, bus, mass transit, and public transportation vehicles
  • Shipbuilding

Use with all FLEXAquick® conduit fittings, connectors and accessories

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Black
Weight:
0.03 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
13.0 mm
Conduit ID:
10.0 mm
Static Bend Radius:
20 mm
Dynamic Bend Radius:
45 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
NFF 16-
101/102 I3

Alternate SKU Numbers

0233-209-110 | 0233209110 | 0233 209 110 | 0233_209_110 | 0233/209/110 | 0233,209,110 | 0233+209+110
