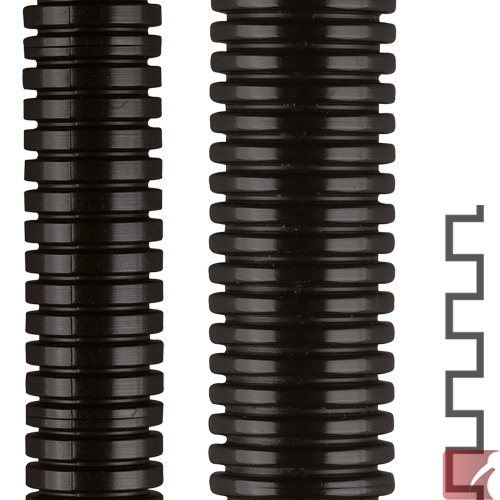

OD 18.5 mm ROHRflex®- PA 12 Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally.

V2 [UL94]

-50ºC to +100ºC ... short term to +130ºC

Material:

• Modified polyamide 12
• Black PA 12, Nylon

Properties:

• high alternate bending strength
• very good low temperature rating
• air and liquid-tight
• oil and benzene resistant
• widely resistant to acids, solvents and cutting fluids
• free of silicone, cadmium, halogen
• self-extinguishing and flame retardant
• black version conduits are UV resistant and stabilized

Applications:

• Specially formulated for railway, bus, mass transit, and public transportation use. Protect wires inside and outside passenger rail cars, trams and buses.
• Rolling stock solutions for wire & cable protection
• Excellent for use in robotic and automated machinery systems. Optimum performance in mind for robot dress kit & pack design; multi-axis bending and active, high speed machinery.
• General machine & automation wiring, shipbuilding, robotics systems.

Special Railway & Transit Vehicle Approvals:

• Railway approval EN 45545-2 (HL 2)
• International standards approved for transit vehicle use, see certifications below

Use with all FLEXAquick® conduit fittings, connectors and accessories

Quick Links to other Products:

• Browse other sizes of ROHRflex® PA12 fine-profile corrugated conduit (narrow ribbed)
• Browse ROHRflex® PA12 coarse-profile corrugated conduits (wide ribbed)
• Browse RQG-N, NPT threaded straight fittings
• Browse RQW-N, NPT threaded 90° elbow fittings
• Browse RQG-M, Metric threaded straight fittings
• Browse RQW-M Metric threaded 90° elbow fittings

Short Form FLEXAquick® NPT Catalogue
