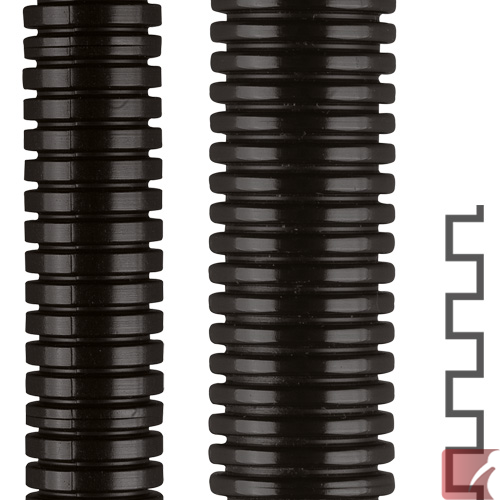

OD 21.2 mm - ROHRflex® PA 6-D Polyamide all plastic Thick-Walled, coarse-profile tubing. Corrugated internally & externally

VO [UL94]

-40ºC to +120ºC ... short term to +150ºC

Material:

• Modified polyamide 6
• Black PA 6, Nylon

Properties:

• air and liquid-tight
• oil resistant against up to + 80ºC
• benzene resistant
• widely resistant to acids, solvents and cutting fluids
• free of silicone, cadmium, halogen
• self-extinguishing and flame retardant
• black version conduits are UV resistant and stabilized

Applications:

• For heavy duty conduit installations
• Excellent for railway, bus, mass transit, and public transportation use
• General machine & automated systems wiring protection, shipbuilding

Special Railway & Transit Vehicle Approvals:

• Railway approval EN 45545-2 (HL 3)
• Exceeds stringent ASTM E 162 and E 662 smoke & toxicity standards for mass transit vehicles
• International standards approved for transit vehicle use, see certifications below

Use with all FLEXAquick® conduit fittings, connectors and accessories
