PA6-UL-SD 35.5 x 42.5 mm ROHRflex Outdoor Rated Black Corrugated Nylon Conduit
0238.202.036

Description

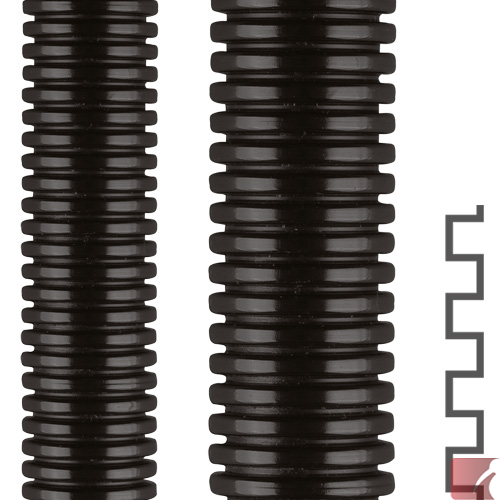

OD 42.5 mm ROHRflex® - PA 6 Nylon all plastic thick-walled, fine-profile tubing. Corrugated internally & externally

This FLEXA non-metallic liquid tight conduit was specifically designed with outdoor applications in mind.

It is UL 1660 listed and CSA C22.2 Nr.227.2.1-14 approved making it ideal for heating, ventilation,

and air conditioning equipment installations.

Use with the full program of FLEXAquick® conduit fittings, connectors, conduit clips, and accessories.

Need a different size?:

Material:

  • V2 [UL94]
  • Modified polyamide 6
  • Black PA 6, Nylon

Properties:

  • Application temperature rating of -25ºC to +120ºC
  • air and liquid-tight
  • oil resistant up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant
  • UV resistant and stabilized

Applications:

  • Heating and air conditioning equipment installations
  • Outdoor equipment hook-ups; like cameras, motors, gate control, sensors and numerous others

Need conduit fittings?:

Get the short form catalogue here: Short Form FLEXAquick® NPT Catalogue

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Black
Weight:
0.222 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
42.5 mm
Conduit ID:
35.5 mm
Static Bend Radius:
100 mm
Dynamic Bend Radius:
150 mm

Certifications

UL 1660
CSA C22.2

Alternate SKU Numbers

0238-202-036 | 0238202036 | 0238 202 036 | 0238+202+036 | 0238/202/036 | 0238,202,036
