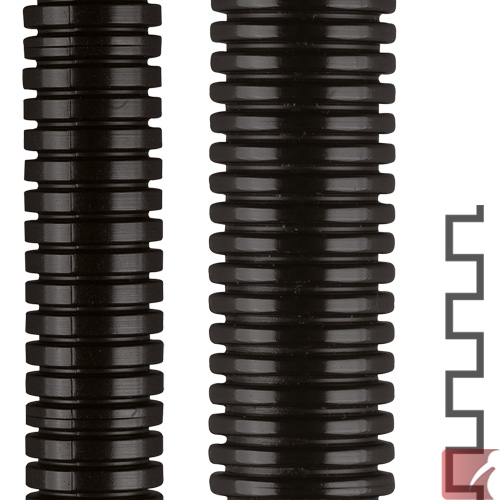

PA6-L 16.5 x 21.2 mm ROHRflex Multi-Purpose black Corrugated Nylon Conduit
0261.202.016

Description

16.5 mm x 21.2 mm OD ROHRflex® - PA6-L multi-purpose black Polyamide all plastic standard-walled, fine profile NW 17 tubing. Corrugated internally & externally

Easy to install, all-purpose flexible conduit for general machine & automation wiring, robotic and automated system hook-up, and plant maintenance wiring

Need a different size?:

Material:

  • Modified polyamide 6, HB [UL94]
  • Black PA 6, Nylon

Properties:

  • Temperature range: -25ºC to ... +120ºC
  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • general machine wiring
  • automation sensor wiring
  • robotics and automated systems wiring
  • plant maintenance and apparatus wiring

Use with all FLEXAquick® fittings, connectors and accessories

Quick Links to other Products:



Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Black
Weight:
0.056 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
21.2 mm
Conduit ID:
16.5 mm
Static Bend Radius:
45 mm
Dynamic Bend Radius:
75 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359

Alternate SKU Numbers

0261-202-016 | 0261202016 | 0261 202 016 | 0261_202_016 | 0261/202/016 | 0261,202,016 | 0261+202+016
