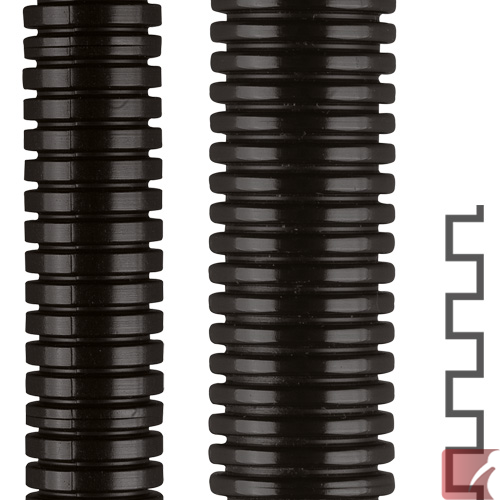

PA6-L 27.5 x 34.5 mm ROHRflex Multi-Purpose black Coarse Profile Corrugated Nylon Conduit
0261.232.029

Description

27.5 x 34.5 mm OD ROHRflex® - PA6-L multi-purpose black Polyamide all plastic thick-walled, coarse profile NW 29 tubing. Corrugated internally & externally

Easy to install, all-purpose flexible conduit for general machine & automation wiring, robotic and automated system hook-up, and plant maintenance wiring

Need a different size?:

Material:

  • Modified polyamide 6, HB [UL94]
  • Black PA 6, Nylon

Properties:

  • Temperature range: -25ºC to ... +120ºC
  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • general machine wiring
  • automation sensor wiring
  • robotics and automated systems wiring
  • plant maintenance and apparatus wiring

Use with all FLEXAquick® fittings, connectors and accessories

Quick Links to other Products:



Specifications

Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Black
Weight:
0.12 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
34.5 mm
Conduit ID:
27.5 mm
Static Bend Radius:
65 mm
Dynamic Bend Radius:
120 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
