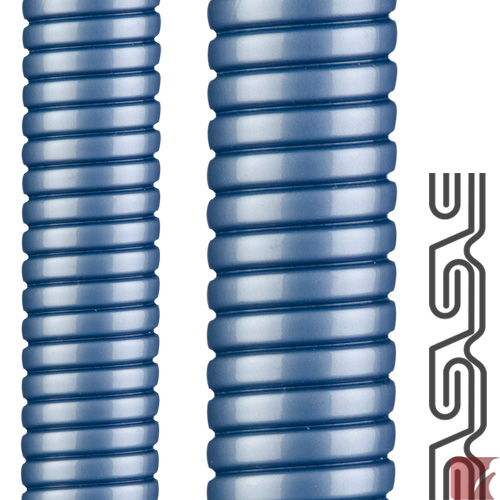

FLEXAgraff®-PU-AS 11.0 x 14.0 mm Blue Polyurethane Jacketed Double Interlock folded Galvanized Steel Protective Conduit
2130.101.011

Description

11.0 x 14.0 mm FLEXAgraff®-PU-AS from Flexa is a Blue Polyurethane (PU) jacketed, Galvanized Steel, flexible liquidtight conduit

Features: a tough flame-resistant PU jacket, no-stretch, bend limiting, high tensile strength, high crush resistance, EMC protection

This conduit is also available on a short 10 metre coil, check here for part # 2131.101.011

Need another size? See other Flexa FLEXAgraff®-PU-AS polyurethane jacketed liquidtight conduits here:

Material:

  • strip-wound, Galvanized Steel
  • "U" shaped profile, double overlapped profile, round cross section
  • Blue polyurethane (PU) sheathing
  • V2 according to UL-94
  • approved to DIN EN IEC 61386-23

Properties:

  • IP68 sealing, all-environment liquidtight protection
  • -50ºC to +100ºC .... short term +130°C, wide application temperature range
  • high tensile and anti-twisting strength
  • highly flexible
  • good compression strength
  • stretch resistant
  • resistant to oil, benzene, and grease
  • widely resistant to solvents and acids
  • free of halogen, silicone and cadmium
  • microbe and flame resistant
  • high EMC shielding factor
  • excellent low temperature performance

Applications:

  • Excellent liquidtight, mechanical and EMC protection for wires and cables on all types of machinery, conveyors, robotics and automation equipment.

  • Good for use indoors and outdoors.

Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Blue
Weight:
0.15 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
14.0 mm
Conduit ID:
11.0 mm
Static Bend Radius:
45 mm
Dynamic Bend Radius:
115 mm

Certifications

EN 50289-1

Alternate SKU Numbers

969786-2 | 2130-101-011 | 2130101011 | 2130 101 011 | 2130_101_011 | 2130/101/011 | 2130,101,011 | 2130+101+011
