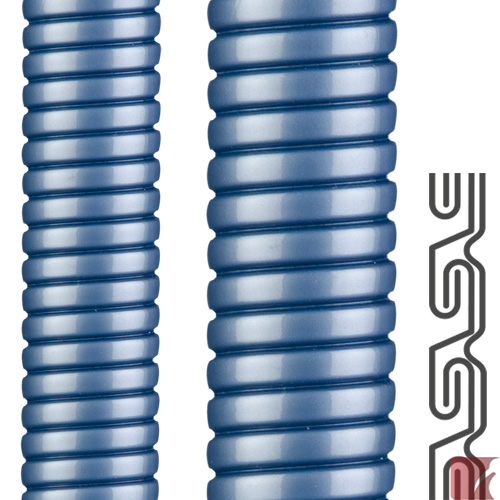

FLEXAgraff®-PU-AS 13.0 x 17.0 mm Blue Polyurethane Jacketed Double Interlock folded Galvanized Steel Protective Conduit small 10 metre coil
2131.101.013

Description

13.0 x 17.0 mm FLEXAgraff®-PU-AS from Flexa is a Blue Polyurethane (PU) jacketed, Galvanized Steel, multi-purpose, flexible liquidtight conduit

Special small 10 metre (33 ft) length roll

Features: a tough flame-resistant PU jacket, no-stretch, bend limiting, high tensile strength, high crush resistance, EMC protection

Need another size? See other Flexa FLEXAgraff®-PU-AS polyurethane jacketed liquidtight conduits here:

Material:

  • strip-wound, Galvanized Steel
  • "U" shaped profile, double overlapped profile, round cross section
  • Blue polyurethane (PU) sheathing
  • V2 according to UL-94
  • approved to DIN EN IEC 61386-23

Properties:

  • IP68 sealing, all-environment liquidtight protection
  • -50ºC to +100ºC .... short term +130°C, wide application temperature range
  • high tensile and anti-twisting strength
  • highly flexible
  • good compression strength
  • stretch resistant
  • resistant to oil, benzene, and grease
  • widely resistant to solvents and acids
  • free of halogen, silicone and cadmium
  • microbe and flame resistant
  • high EMC shielding factor
  • excellent low temperature performance

Applications:

  • Excellent liquidtight, mechanical and EMC protection for wires and cables on all types of machinery, conveyors, robotics and automation equipment.

  • Good for use indoors and outdoors

Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Blue
Weight:
0.26 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
17.0 mm
Conduit ID:
13.0 mm
Static Bend Radius:
50 mm
Dynamic Bend Radius:
125 mm

Certifications

EN 50289-1

Alternate SKU Numbers

1-969786-2 | 2131-101-013 | 2131101013 | 2131 101 013 | 2131_101_013 | 2131/101/013 | 2131,101,013 | 2131+101+013
