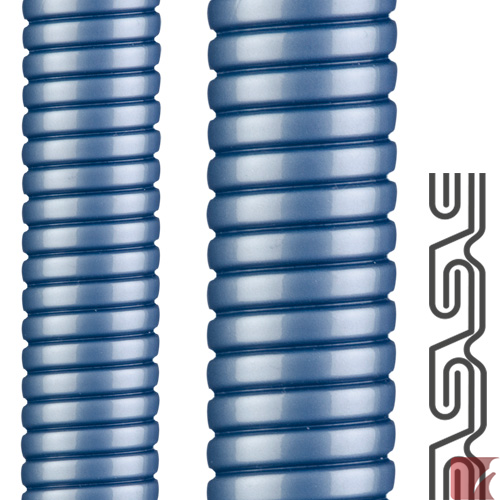

49.0 x 56.0 mm FLEXAgraff®-PU-AS from Flexa is a Blue Polyurethane (PU) jacketed, Galvanized Steel, multi-purpose, flexible liquidtight conduit

Special small 10 metre (33 ft) length roll

Features: a tough flame-resistant PU jacket, no-stretch, bend limiting, high tensile strength, high crush resistance, EMC protection

Need another size? See other Flexa FLEXAgraff®-PU-AS polyurethane jacketed liquidtight conduits here:

Material:

• strip-wound, Galvanized Steel
• "U" shaped profile, double overlapped profile, round cross section
• Blue polyurethane (PU) sheathing
• V2 according to UL-94
• approved to DIN EN IEC 61386-23

Properties:

• IP68 sealing, all-environment liquidtight protection
• -50ºC to +100ºC .... short term +130°C, wide application temperature range
• high tensile and anti-twisting strength
• highly flexible
• good compression strength
• stretch resistant
• resistant to oil, benzene, and grease
• widely resistant to solvents and acids
• free of halogen, silicone and cadmium
• microbe and flame resistant
• high EMC shielding factor
• excellent low temperature performance

Applications:

• Excellent liquidtight, mechanical and EMC protection for wires and cables on all types of machinery, conveyors, robotics and automation equipment.

• Good for use indoors and outdoors
