OD 10.0 mm Flexa Protective EMC Rated flexible metal conduit with tinned copper wire braiding and a (PU) Polyurethane Jacket

Up to 80 dB and 30 MHz EMC screening attenuation! Rugged, liquidtight, no-stretch, flexible; all sealed in a green polyurethane sheathing.

Need another size? See other FLEXAgraff®-CU-PU-AS green PU jacketed liquidtight EMC rated conduits here:

Material & Structure:

• strip-wound galvanized steel
• "U" shaped profile, double overlapped folding, round cross-section
• tinned copper wire braid
• Polyurethane (PU) sheathing for excellent all-environment protection
• Rated V2 according to UL 94

Properties:

• IP 68 sealing level

• -50ºC to +100ºC .... short term +130°C, wide application temperature range

• high EMC shielding factor up to 30 MHz according to EN 50298-1-6 up to 80 dB
• use brass thrust collar for full EMC safe assembly
• high tensile and anti-twisting strength
• highly flexible
• good compression strength
• stretch resistant
• approved to DIN EN IEC 61386-23

Applications:

Excellent for cable & wire protection where EMC shielding is a must.

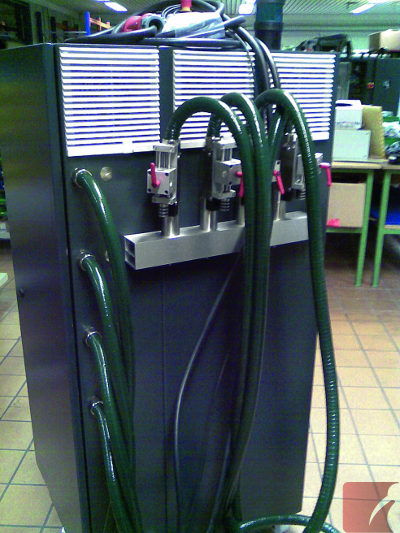

EMC shielding for applications including: robot servo-wiring, railway control equipment cabling, metering & measuring apparatus cabling, communication equipment wiring, process control & automation wiring.

Custom Deliveries:

• Full metre lengths beginning with one metre of precisely measured lengths fully assembled with connecting elements for EMC applications are available from the factory
