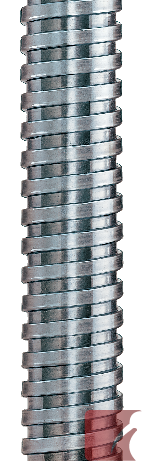

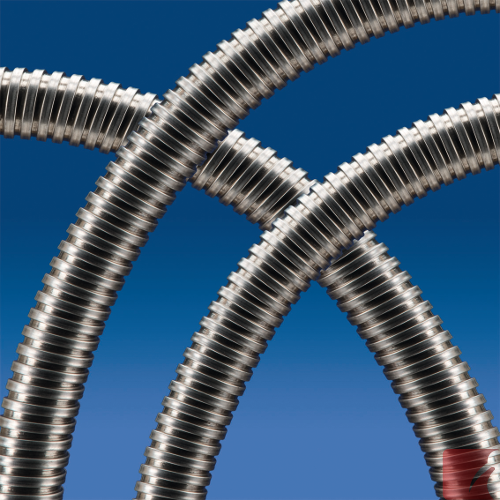

SPR-AS 11.0 x 14.0 mm Square-Lock folded Galvanized Steel Protective Conduit for Wire and Cable
1010.111.011

Description

11.0 x 14.0 mm SPR-AS from Flexa is a multi-purpose, non-liquidtight, protective metal conduit for wiring installations

Features: above average flexibility, high tensile strength, high crush resistance, lightweight, wide temperature range

Excellent mechanical protection for wires and cables on thermoforming machines, plastic extruders, hot melt machines and alike

This conduit is also available on a shorter 10 metre coil, check for part # 1011.111.011

Need a different size? See other SPR-AS standard sized conduits here.

Applications for non-liquidtight wire protection:

  • vac-seal machines
  • hot-wrap machines
  • thermoforming machines
  • packaging and labelling machines
  • plastic extruders
  • heat and exhaust ventilation control
  • heater and furnace control modules

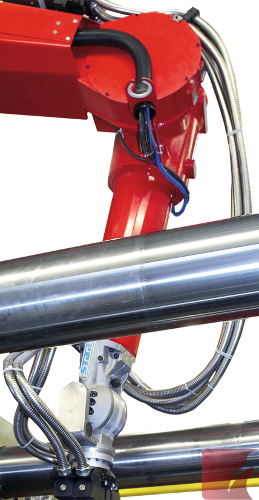

  • robotics system wiring
  • security sensor wiring
  • railway industry

Material & Structure:

  • strip-wound, galvanized steel
  • "S" profile, square-lock overlapping folded joint construction
  • polygonal profile

Properties:

  • IP40 sealing
  • wide application temperature range of -50ºC to +250ºC
  • ultra flexible, "slinky" in nature
  • lightweight
  • good compression strength
  • stretch resistant

Specifications

Conduit Profile:
Spiral
Conduit Type:
Regular
Color:
Silver
Weight:
0.12 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
14.0 mm
Conduit ID:
11.0 mm
Static Bend Radius:
28 mm
Dynamic Bend Radius:
70 mm

Datasheet

PDF iconspr-as.pdf

Certifications

Alternate SKU Numbers

1010-111-011 | 1010111011 | 1010 111 011 | 1010_111_011 | 1010/111/011 | 1010,111,011 | 1010+111+011
