SPR-AS 8.0 x 10.0 mm Square-Lock folded Galvanized Steel Protective Conduit for Wire and Cable small 10 metre roll
1011.111.008

Description

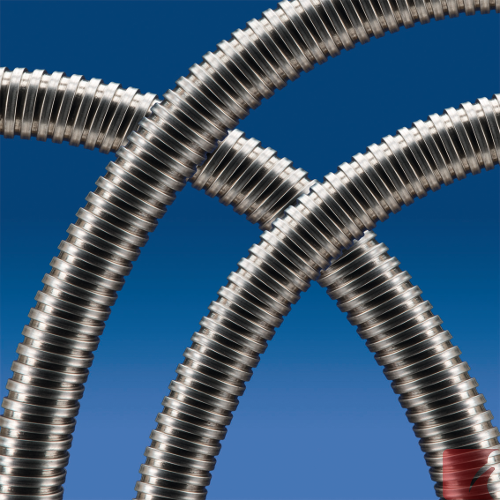

8.0 x 10.0 mm SPR-AS from Flexa is a multi-purpose, non-liquidtight, protective metal conduit for wiring installations

Small pack, 10 metre roll.

Features: above average flexibility, high tensile strength, high crush resistance, lightweight, wide temperature range

Excellent mechanical protection for wires and cables on thermoforming machines, plastic extruders, hot melt machines and alike

This conduit is also available on a larger 50 metre roll, see part # 1010.111.008

Need a different size? See other SPR-AS standard sized conduits here.

Applications for non-liquidtight wire protection:

  • vac-seal machines
  • hot-wrap machines
  • thermoforming machines
  • packaging and labelling machines
  • plastic extruders
  • heat and exhaust ventilation control
  • heater and furnace control modules

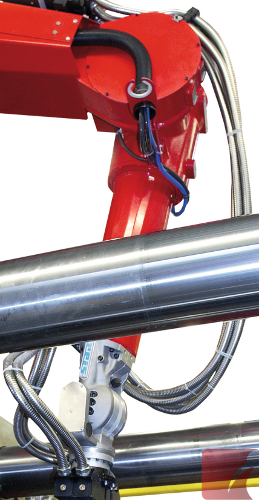

  • robotics system wiring
  • security sensor wiring
  • railway industry

Material & Structure:

  • strip-wound, galvanized steel
  • "S" profile, square-lock overlapping folded joint construction
  • polygonal profile

Properties:

  • IP40 sealing
  • wide application temperature range of -50ºC to +250ºC
  • ultra flexible, "slinky" in nature
  • lightweight
  • good compression strength
  • stretch resistant

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Silver
Weight:
0.053 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
10.0 mm
Conduit ID:
8.0 mm
Static Bend Radius:
20 mm
Dynamic Bend Radius:
50 mm

Datasheet

PDF iconspr-as.pdf
