PS-VA 5.0 x 7.5 mm Silicone Jacketed Stainless Steel Helix Small Diameter Conduit for Fiber Optics Protection
0133.900.005

Description

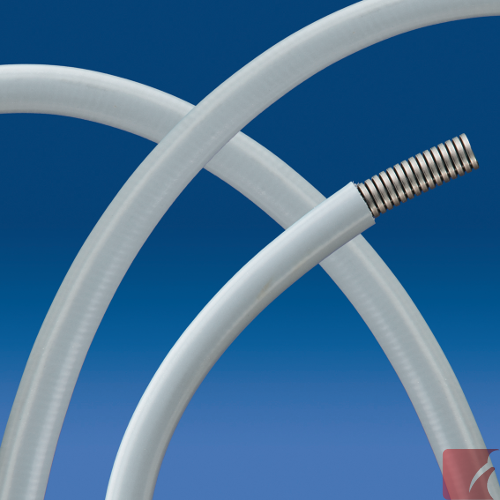

5.0 x 7.5 mm PS-VA from Flexa is an autoclavable flexible conduit constructed of a stainless steel helix with

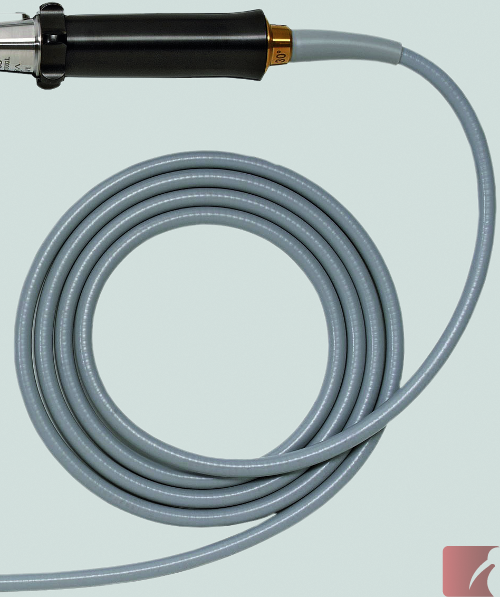

a FDA conforming silicone jacket. Ideally suited for use in protecting medical scoping & lighting cables, as well as

fiber optic sensor bundles in food & pharmaceutical processing applications.

This small inner diameter conduit features a specially formulated silicone jacket compound designed to fulfill the material

requirements of the following standards:

  • FDA  CFR title 21, Part 177.2600

  • B f R XV, Silicone

  • DIN ISO 10993, Bio-Compatibility

  • USP Class VI, American Pharmacopeia

Need another size? See other PS-VA or PSL-VA small diameter FDA silcone jacketed flexible conduits here:

PS-VA flexible conduits with Inside Diameters of 2.5 mm to 8.0 mm

           PSL-VA flexible thin wire helix conduits with Inside Diameters of 3.3 mm to 7.7 mm

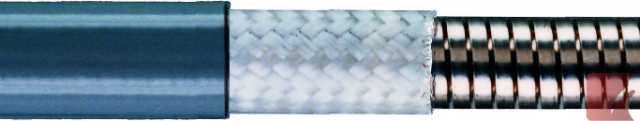

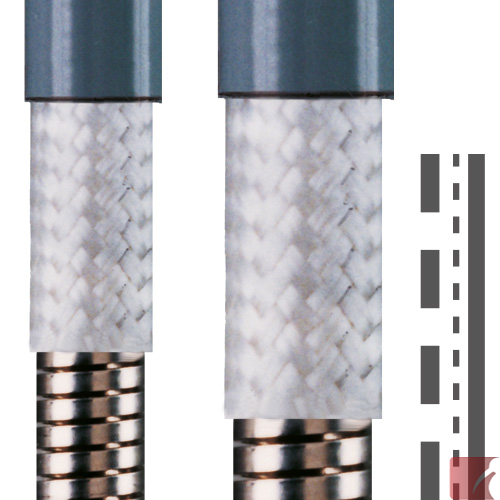

Material & Structure:

  • flat wound stainless steel wire helix construction
  • stainless steel V2A, 304 AISI
  • fiber glass braiding
  • FDA approved silicone jacketing
  • Grey standard colour. Special colours on request: minimum requirement of 500 metres (1640 ft)

Properties:

  • autoclave ready, withstands medical sterilization
  • high compression strength
  • stretch resistant conduit design
  • air and liquid-tight, IP68 sealing
  • good flexibility
  • lightweight
  • widely resistant to solvents and chemicals
  • free of halogen and cadmium
  • wide application temperature range of -50ºC to +180ºC ... short term +200ºC

Applications Include:

Sensor fiber optics cables, medical fiber optic lighting bundles, medical fiber optic scoping bundles, machine lighting,

laser fiber optic bundles, beam waveguide, measuring and optoelectronics technologies.

Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Grey
Weight:
0.079 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
7.5 mm
Conduit ID:
5.0 mm
Static Bend Radius:
25 mm
Dynamic Bend Radius:
65 mm
