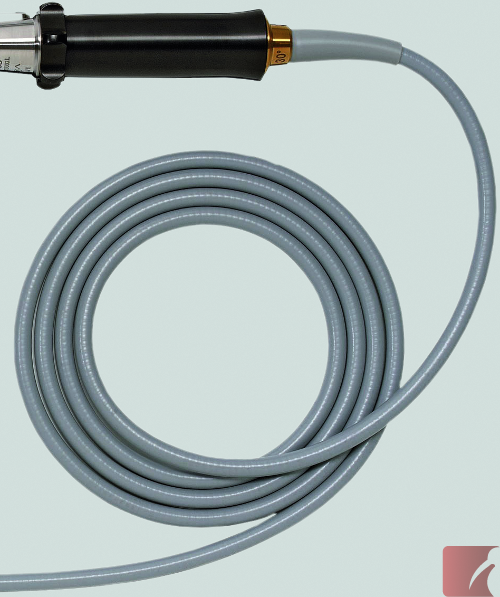

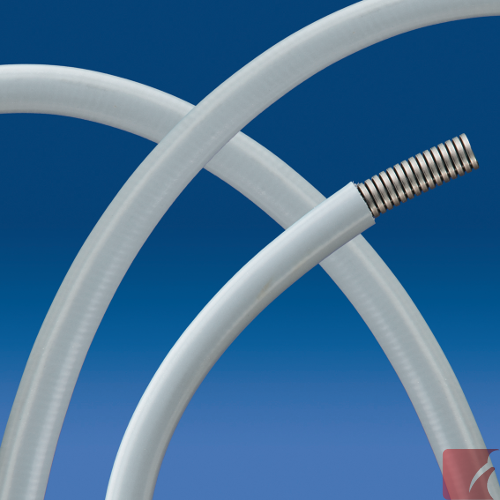

7.7 x 10.1 mm PSL-VA from Flexa is an autoclavable flexible conduit constructed of a stainless steel helix with

a FDA conforming silicone jacket. Ideally suited for use in protecting medical scoping & lighting cables, as well as

fiber optic sensor bundles in food & pharmaceutical processing applications.

This small inner diameter conduit features a specially formulated silicone jacket compound designed to fulfill the material

requirements of the following standards:

• FDA  CFR title 21, Part 177.2600

• B f R XV, Silicone

• DIN ISO 10993, Bio-Compatibility

• USP Class VI, American Pharmacopeia

Need another size? See other PS-VA or PSL-VA small diameter FDA silcone jacketed flexible conduits here:

PS-VA flexible conduits with Inside Diameters of 2.5 mm to 8.0 mm

           PSL-VA flexible thin wire helix conduits with Inside Diameters of 3.3 mm to 7.7 mm

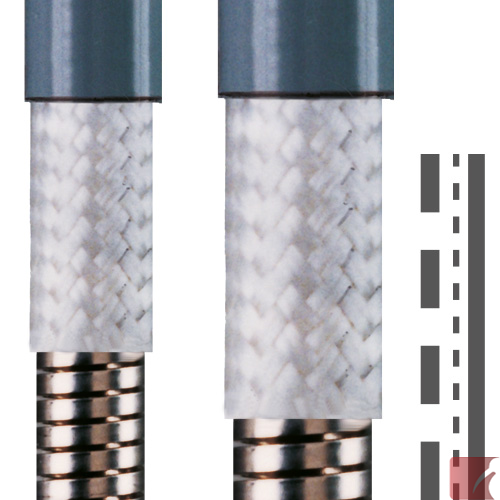

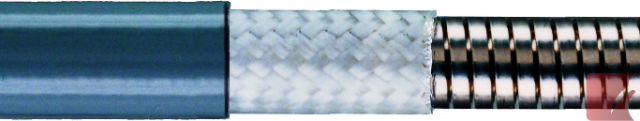

Material & Structure:

• flat wound thin stainless steel wire helix construction
• stainless steel V2A, 304 AISI
• fiber glass braiding
• FDA approved silicone jacketing
• Grey standard colour. Special colours on request: minimum requirement of 500 metres (1640 ft)

Properties:

• autoclave ready, withstands medical sterilization
• high compression strength
• stretch resistant conduit design
• air and liquid-tight, IP68 sealing
• good flexibility
• lightweight
• widely resistant to solvents and chemicals
• free of halogen and cadmium
• wide application temperature range of -50ºC to +180ºC ... short term +200ºC

Applications Include:

Sensor fiber optics cables, medical fiber optic lighting bundles, medical fiber optic scoping bundles, machine lighting,

laser fiber optic bundles, beam waveguide, measuring and optoelectronics technologies.
