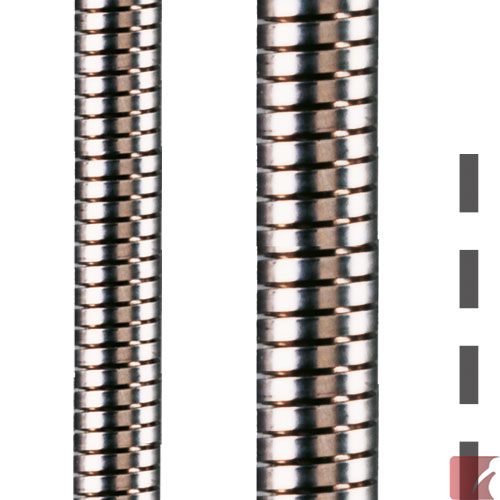

3.0 x 3.6 mm FDW-VA from Flexa is a lightweight, Protective, Stainless Steel Mono-Coil Helix, for wire, cable and fiber optic sensor bundles

This small diameter monocoil conduit features a loosely wound open profile helix without interlocks.

It's an ideal solution for protecting fine wires, cables, fiber optic bundles and small pneumatic hoses.

Need another size? See other FDW-VA small diameter helix conduits here:

Mono-Coils with Inside Diameters of 2.5 mm to 8.0 mm

Material & Structure:

• strip-wound, stainless steel V2A, 304 AISI
• Helix, loosely wound, open profile, non-overlapping construction

Properties:

• very flexible
• lightweight
• good compression strength
• widely resistant to solvents and chemicals
• wide application temperature range of -200ºC to +600ºC

Applications:

• Sensor fiber optic cables
• Lighting scopes & guides
• Laser bundles
• Communication cabling
• Robotics system wiring
• Security sensor wiring
• Packaging machinery
• Railway industry
