FDW-VA 8.0 x 9.6 mm Mono-Coil, Helix Profile, Stainless Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundles
0131.801.008

Description

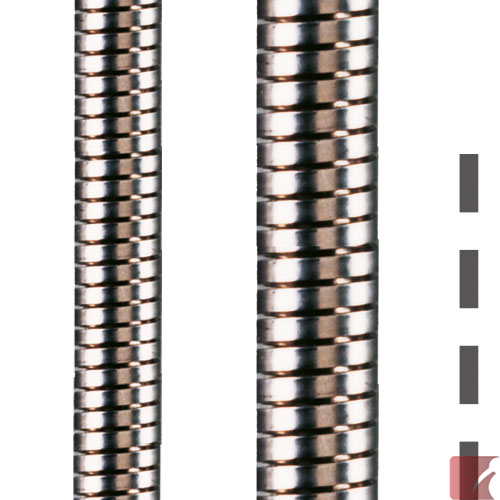

8.0 x 9.6 mm FDW-VA from Flexa is a lightweight, Protective, Stainless Steel Mono-Coil Helix, for wire, cable and fiber optic sensor bundles

This small diameter monocoil conduit features a loosely wound open profile helix without interlocks.

It's an ideal solution for protecting fine wires, cables, fiber optic bundles and small pneumatic hoses.

Need another size? See other FDW-VA small diameter helix conduits here:

Mono-Coils with Inside Diameters of 2.5 mm to 8.0 mm

Material & Structure:

  • strip-wound, stainless steel V2A, 304 AISI
  • Helix, loosely wound, open profile, non-overlapping construction

Properties:

  • very flexible
  • lightweight
  • good compression strength
  • widely resistant to solvents and chemicals
  • wide application temperature range of -200ºC to +600ºC

Applications:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Laser bundles
  • Communication cabling
  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry

Specifications

Conduit Profile:
Spiral
Conduit Type:
Regular
Color:
Silver
Weight:
0.110 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
9.6 mm
Conduit ID:
8.0 mm
Static Bend Radius:
45.0 mm
Dynamic Bend Radius:
110.0 mm

Certifications

Alternate SKU Numbers

0131-801-008 | 0131801008 | 0131 801 008 | 0131+801+008 | 0131/801/008 | 0131,801,008
