SPR-VA 6.0 x 8.0 mm "No-Stretch" Square-Lock folded Stainless Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundle protection
1018.801.006

Description


6.0 x 8.0 mm SPR-VA from Flexa is a multi-purpose, lightweight, Stretch Limited, highly flexible conduit

This small diameter conduit features a durable, "No-Stretch" construction making it ideal for protecting

fiber optic sensor bundles.

Need another size? See other SPR-VA small diameter conduits here:

"No-Stretch" conduits with Inside Diameters of 1.2 mm to 2.6 mm

"No-Stretch" conduits with Inside Diameters of 3.0 mm to 10.0 mm

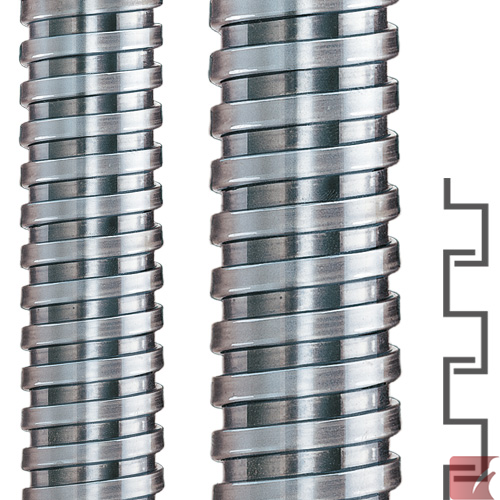

Material & Structure:

  • strip-wound, stainless steel V2A, 304 AISI
  • "S" profile, square-lock overlapping folded joint construction
  • polygonal profile

Properties:

  • "No-Stretch" conduit design
  • high tensile strength
  • ultra flexible, "slinky" in nature
  • lightweight
  • very good wall compression strength
  • wide application temperature range of -200ºC to +600ºC
  • IP40 sealing

Applications:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Communication cabling
  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry

Specifications

Conduit Profile:
Spiral
Conduit Type:
Regular
Color:
Silver
Weight:
0.055 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
8.0 mm
Conduit ID:
6.0 mm
Static Bend Radius:
22.0 mm
Dynamic Bend Radius:
55.0 mm
