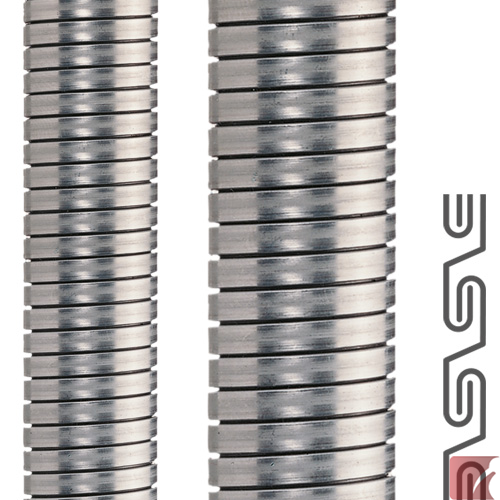

FLEXAgraff®-VA 10.0 x 13.0 mm Bend Limiting, Interlock folded Stainless Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundle protection
1080.801.010

Description

10.0 x 13.0 mm FLEXAgraff®-VA from Flexa is a bend limiting, multi-purpose, lightweight, highly flexible conduit

This small diameter conduit features a rugged, "Bend Limiting", interlocked construction making it ideal for protecting fine wires, cables, and

fiber optic sensor bundles.

Need another size? See other FLEXAgraff®-VA small diameter Bend Limiting conduits here:

Material & Structure:

  • strip-wound, stainless steel V2A, 304 AISI
  • "U" profile, double overlapped folded construction
  • polygonal cross section

Properties:

  • "Bend Limiting", stretch resistant conduit design
  • very flexible
  • lightweight
  • very good wall compression strength
  • wide application temperature range of -200ºC to +600ºC
  • IP40 sealing

Applications:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Communication cabling
  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry



Specifications

Conduit Profile:
Spiral
Conduit Type:
Regular
Color:
Silver
Weight:
0.29 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
13.0 mm
Conduit ID:
10.0 mm
Static Bend Radius:
65 mm
Dynamic Bend Radius:
160 mm

Certifications

Alternate SKU Numbers

1080-801-010 | 1080801010 | 1080 801 010 | 1080_801_010 | 1080/801/010 | 1080,801,010 | 1080+801+010
