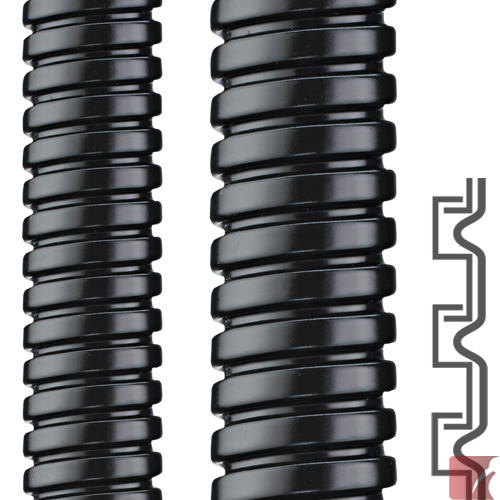

SPR-PVC 10.0 x 14.0 mm PVC Jacketed Square-Lock folded Galvanized Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundle protection
2010.102.010

Description


10.0 x 14.0 mm SPR-PVC from Flexa is a black PVC jacketed, multi-purpose, lightweight, stretch resistant, flexible liquidtight conduit

This small diameter liquidtight conduit features a durable, stretch resistant Galvanized Steel construction making it ideal for

protecting fine wires, cables, and fiber optic sensor bundles.

Need another size? See other SPR-PVC small diameter liquidtight conduits here:

Material & Structure:

  • strip-wound, Galvanized Steel
  • "S" profile, square-lock overlapping folded joint construction
  • black PVC jacket sheathing, non-flame propagating
  • free of silicone and cadmium

Properties:

  • liquidtight, IP68 sealing
  • stretch resistant conduit design
  • good flexibility
  • lightweight
  • good compression strength
  • wide application temperature range of -25ºC to +90ºC .... short term +100°C

Applications:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Communication cabling
  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry



Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Black
Weight:
0.135 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
14.0 mm
Conduit ID:
10.0 mm
Static Bend Radius:
45.0 mm
Dynamic Bend Radius:
115.0 mm

Certifications

Alternate SKU Numbers

2010-102-010 | 2010102010 | 2010 102 010 | 2010_102_010 | 2010/102/010 | 2010,102,010 | 2010+102+010
