SPR-VA-PVC 9.0 x 12.0 mm PVC Jacketed Square-Lock folded Stainless Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundle protection
2010.182.009

Description

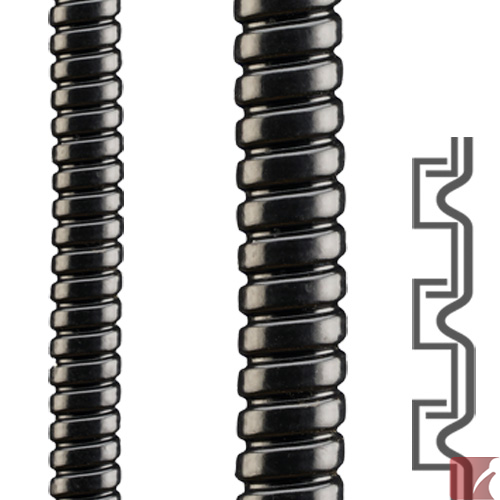

9.0 x 12.0 mm SPR-VA-PVC from Flexa is a black PVC jacketed, multi-purpose, lightweight, stretch resistant, flexible liquidtight conduit

This small inner diameter conduit features a durable, stretch resistant construction making it ideal for protecting fine wires,

cables, and fiber optic sensor bundles.

Need another size? See other SPR-VA-PVC small diameter liquidtight conduits here:

Material & Structure:

  • strip-wound, stainless steel V2A, 304 AISI
  • "S" profile, square-lock overlapping folded joint construction
  • black PVC jacket sheathing, non-flame propagating
  • free of silicone and cadmium

Properties:

  • liquidtight, IP68 sealing
  • stretch resistant conduit design
  • good flexibility
  • lightweight
  • good compression strength
  • wide application temperature range of -25ºC to +90ºC .... short term +100°C

Applications:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Communication cabling
  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry



Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Black
Weight:
0.105 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
12.0 mm
Conduit ID:
9.0 mm
Static Bend Radius:
38.0 mm
Dynamic Bend Radius:
100.0 mm

Certifications

Alternate SKU Numbers

2010-182-009 | 2010182009 | 2010 182 009 | 2010+182+009 | 2010/182/009 | 2010,182,009
