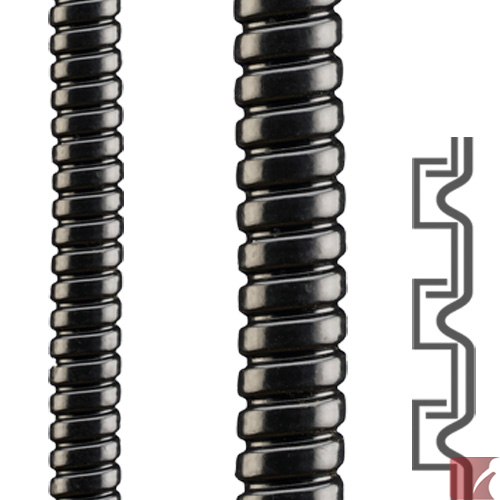

SPR-PVC-ESD 6.0 x 9.0 mm Static Dissipative PVC Jacketed Square-Lock folded Galvanized Steel Small Diameter Conduit for wire, cable and fiber optics protection
2010.902.006

Description

6.0 x 9.0 mm SPR-PVC-ESD from Flexa is a Static Dissipative PVC jacketed, lightweight, stretch resistant, flexible liquidtight conduit

This small diameter liquidtight conduit features a specially formulated static dissipative, electrically conductive, PVC sheathing.

Its anti-static jacket properties and durable construction, make it ideal for use in static sensitive wiring and cabling applications.

Need another size? See other SPR-PVC-ESD small diameter liquidtight static dissipative conduits here:

Material & Structure:

  • black PVC jacket sheathing, electrically conductive, static dissipative
  • specific surface resistivity of < 106 ohms
  • strip-wound, Galvanized Steel
  • "S" profile, square-lock overlapping folded joint construction
  • free of silicone and cadmium

Properties:

  • liquidtight, IP68 sealing
  • stretch resistant conduit design
  • good flexibility
  • lightweight
  • good wall compression strength
  • wide application temperature range of -25ºC to +90ºC .... short term +100°C

Applications with static sensitive cabling:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Communication cabling
  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry



Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Black
Weight:
0.070 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
9.0 mm
Conduit ID:
6.0 mm
Static Bend Radius:
24.0 mm
Dynamic Bend Radius:
60.0 mm

Certifications

Alternate SKU Numbers

2010-902-006 | 2010902006 | 2010 902 006 | 2010+902+006 | 2010/902/006 | 2010,902,006
