SPR 10.0 x 13.0 mm Square-Lock folded Galvanized Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundle protection
1010.101.010

Description


10.0 x 13.0 mm SPR from Flexa is a multi-purpose, lightweight, high tensile strength, high crush resistance, flexible conduit.

Its small diameter and durable construction make it ideal for protecting fine wires, cables, and fiber optic bundles.

Need another size? See other SPR small diameter conduits here.

Applications:

  • Sensor fiber optic cables
  • Lighting scopes & guides
  • Communication cabling

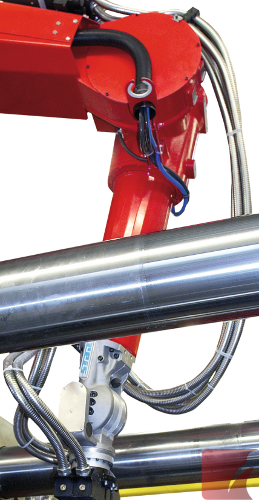

  • Robotics system wiring
  • Security sensor wiring
  • Packaging machinery
  • Railway industry

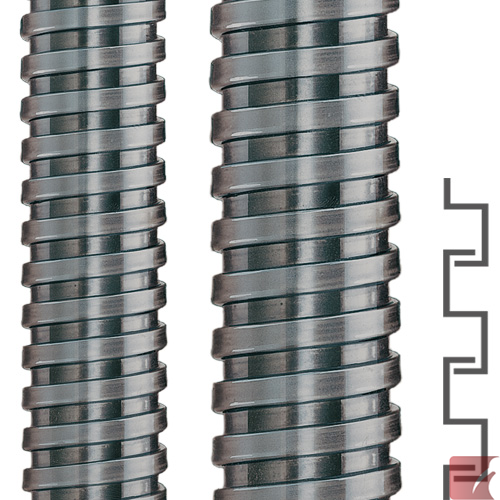

Material & Structure:

  • strip-wound, galvanized steel
  • "S" profile, square-lock overlapping folded joint construction
  • polygonal profile

Properties:

  • ultra flexible, "slinky" in nature
  • lightweight
  • good compression strength
  • stretch resistant
  • wide application temperature range of -50ºC to +250ºC
  • IP40 sealing

Specifications

Conduit Profile:
Spiral
Conduit Type:
Regular
Color:
Silver
Weight:
0.092 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
13.0 mm
Conduit ID:
10.0 mm
Static Bend Radius:
32 mm
Dynamic Bend Radius:
80 mm
