SPR-VA-PVC 3.0 x 6.0 mm PVC Jacketed Square-Lock folded Stainless Steel Small Diameter Conduit for wire, cable and fiber optic sensor bundle protection
2010.182.003
Description

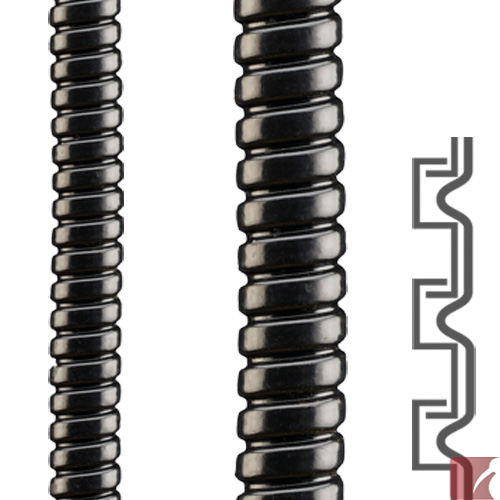

3.0 x 6.0 mm SPR-VA-PVC from Flexa is a black PVC jacketed, multi-purpose, lightweight, stretch resistant, flexible liquidtight conduit
This small inner diameter conduit features a durable, stretch resistant construction making it ideal for protecting fine wires,
cables, and fiber optic sensor bundles.
Need another size? See other SPR-VA-PVC small diameter liquidtight conduits here:
Material & Structure:
- strip-wound, stainless steel V2A, 304 AISI
- "S" profile, square-lock overlapping folded joint construction
- black PVC jacket sheathing, non-flame propagating
- free of silicone and cadmium
Properties:
- liquidtight, IP68 sealing
- stretch resistant conduit design
- good flexibility
- lightweight
- good compression strength
- wide application temperature range of -25ºC to +90ºC .... short term +100°C
Applications:
- Sensor fiber optic cables
- Lighting scopes & guides
- Communication cabling
- Robotics system wiring
- Security sensor wiring
- Packaging machinery
- Railway industry
Specifications
Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Black
Weight:
0.041 kg
Package quantity:
50 metres
Dimensions:
Conduit OD:
6.0 mm
Conduit ID:
3.0 mm
Static Bend Radius:
15.0 mm
Dynamic Bend Radius:
37.0 mm
Certifications


Alternate SKU Numbers
2010-182-003 | 2010182003 | 2010 182 003 | 2010+182+003 | 2010/182/003 | 2010,182,003
