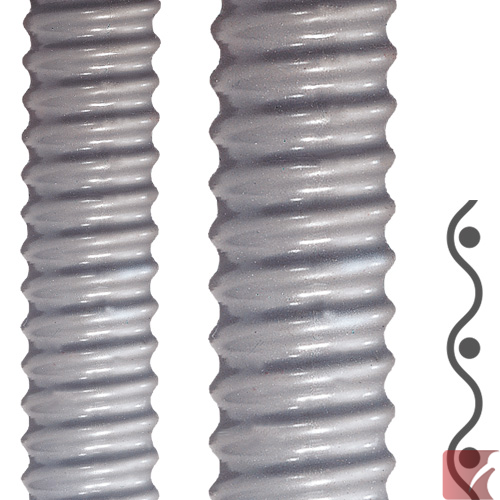

AIRflex-KUW-PVC-AS 48.0 x 56.0 mm Spiral PVC liquidtight conduit
2030.101.048

Description

OD 56.0 mm AIRflex® Spiral PVC liquidtight conduit for wire, cable and guide chain applications

IP 68 - liquid tight & air tight

-25ºC to +90ºC ... 100ºC short term

Material:

  • helical coiled PVC plastic conduit
  • spring steel wire helix with PVC sheathing
  • approved to DIN EN IEC 61386-23

Properties:

  • extremely flexible
  • widely resistant to solvents and acids
  • free of silicone and cadmium
  • good application temperature range
  • suitable for vacuum applications

Applications:

Excellent cable & wire protection for all applications including optoelectronics and guide chain solutions.

Other applications include: machine building, railway industry, shipbuilding and automation.

Need other conduits or fittings? Check here:

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.875 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
56.0 mm
Conduit ID:
48.0 mm
Static Bend Radius:
40.0 mm
Dynamic Bend Radius:
100 mm

Certifications

UL1696
UL 1696
#E86359

Alternate SKU Numbers

2030-101-048 | 2030101048 | 2030 101 048 | 2030_101_048 | 2030/101/048 | 2030,101,048 | 2030+101+048
