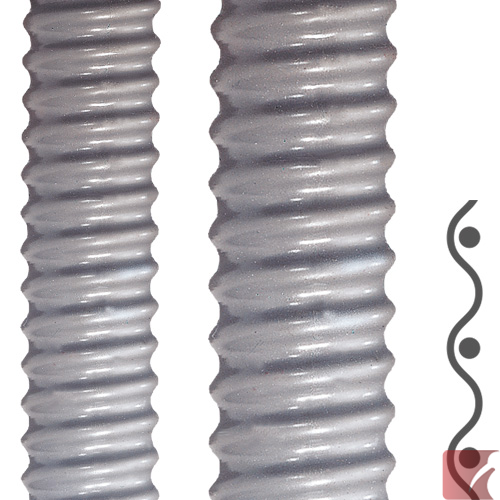

OD 10.0 mm AIRflex® Spiral PVC liquidtight conduit for wire, cable and guide chain applications

Special small 10 metre coil

IP 68 - liquid tight & air tight

-25ºC to +90ºC ... 100ºC short term

Material:

• helical coiled PVC plastic conduit
• spring steel wire helix with PVC sheathing
• approved to DIN EN IEC 61386-23

Properties:

• extremely flexible
• widely resistant to solvents and acids
• free of silicone and cadmium
• good application temperature range
• suitable for vacuum applications

• also available on a longer 50 metre coil, click here for part # 2030.101.007

Applications:

Excellent cable & wire protection for all applications including optoelectronics and guide chain solutions.

Other applications include: machine building, railway industry, shipbuilding and automation.

Need fittings? Check here:

• Browse USK-M, Metric threaded straight fittings
• Browse USK-P, PG threaded straight fittings
• Browse LKI-M, Metric threaded swivelling straight fittings
• Browse LKI-P, PG threaded swivelling straight fittings
