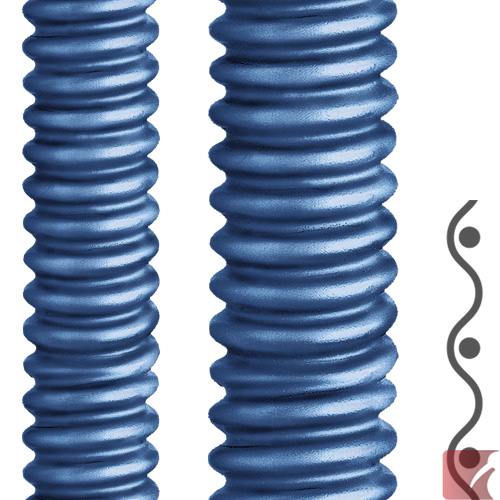

AIRflex-KUW-PU-AS 16.0 x 21.0 mm Spiral Polyurethane liquidtight conduit
2040.701.016

Description

OD 21.0 mm AIRflex® Spiral PU - Polyurethane liquidtight conduit for wire, cable and guide chain applications

IP68 - liquid tight & air tight

-40ºC to +100ºC... 120ºC short term

Also available on a shorter 10 metre coil, click here for part # 2041.701.016

Material:

  • helical coiled plastic conduit
  • spring steel wire helix with PU - polyurethane sheathing
  • approved to DIN EN IEC 61386-23
  • V2 according to UL 94

Properties:

  • extremely flexible
  • very good abrasion resistance
  • widely resistant to solvents and acids
  • free of halogen, silicone and cadmium
  • microbe resistant
  • flame resistant
  • excellent application temperature range
  • outstanding low temperature performance
  • suitable for vacuum applications

Applications:

  • Excellent for use in robotic and automated machinery systems. Optimum performance in mind for robot arms; multi-axis bending, and active, high speed machinery.
  • General machine & automation wiring, shipbuilding, robotics systems.
  • Other applications include: machine building, medical apparatus, pharmaceutical packaging machinery, railway industry, shipbuilding, automation, optoelectronics and guide chain solutions.

Need other conduits or fittings? Check here:

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Blue
Weight:
0.16 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
21.0 mm
Conduit ID:
16.0 mm
Static Bend Radius:
17.0 mm
Dynamic Bend Radius:
45 mm

Certifications

Alternate SKU Numbers

969788-5 | 2040-701-016 | 2040701016 | 2040 701 016 | 2040_701_016 | 2040/701/016 | 2040,701,016 | 2040+701+016
