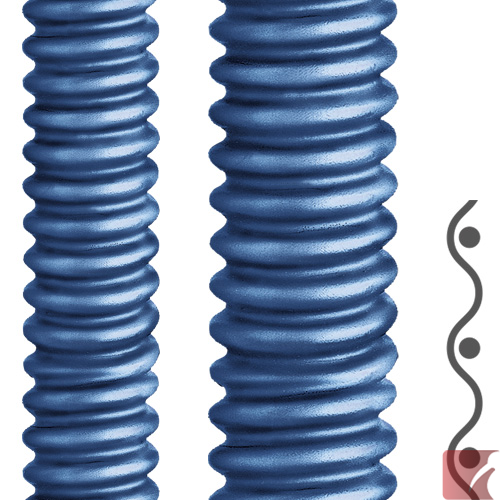

OD 19.0 mm AIRflex® Spiral PU - Polyurethane liquidtight conduit for wire, cable and guide chain applications

Special small 10 metre coil

IP68 - liquid tight & air tight

-40ºC to +100ºC... 120ºC short term

Also available on a longer 50 metre coil, click here for part # 2040.701.015

Material:

• helical coiled plastic conduit
• spring steel wire helix with PU - polyurethane sheathing
• approved to DIN EN IEC 61386-23
• V2 according to UL 94

Properties:

• extremely flexible
• very good abrasion resistance
• widely resistant to solvents and acids
• free of halogen, silicone and cadmium
• microbe resistant
• flame resistant
• excellent application temperature range
• outstanding low temperature performance
• suitable for vacuum applications

Applications:

• Excellent for use in robotic and automated machinery systems. Optimum performance in mind for robot arms; multi-axis bending, and active, high speed machinery.
• General machine & automation wiring, shipbuilding, robotics systems.
• Other applications include: machine building, medical apparatus, pharmaceutical packaging machinery, railway industry, shipbuilding, automation, optoelectronics and guide chain solutions.
