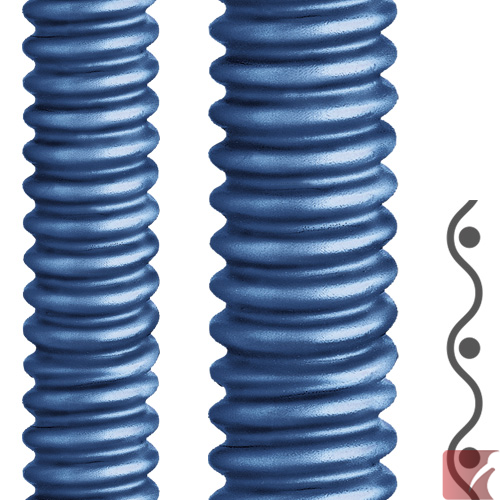

AIRflex-KUW-PU-AS 38.0 x 45.0 mm Spiral Polyurethane liquidtight conduit, 10 metre coil
2041.701.038

Description

OD 45.0 mm AIRflex® Spiral PU - Polyurethane liquid tight conduit for wire, cable and guide chain applications

Special small 10 metre coil

IP68 - liquid tight & air tight

-40ºC to +100ºC... 120ºC short term

Also available on a longer 25 metre coil, click here for part # 2040.701.038

Material:

  • helical coiled plastic conduit
  • spring steel wire helix with PU - polyurethane sheathing
  • approved to DIN EN IEC 61386-23
  • V2 according to UL 94

Properties:

  • extremely flexible
  • very good abrasion resistance
  • widely resistant to solvents and acids
  • free of halogen, silicone and cadmium
  • microbe resistant
  • flame resistant
  • excellent application temperature range
  • outstanding low temperature performance
  • suitable for vacuum applications

Applications:

  • Excellent for use in robotic and automated machinery systems. Optimum performance in mind for robot arms; multi-axis bending, and active, high speed machinery.
  • General machine & automation wiring, shipbuilding, robotics systems.
  • Other applications include: machine building, medical apparatus, pharmaceutical packaging machinery, railway industry, shipbuilding, automation, optoelectronics and guide chain solutions.

Need other conduits or fittings? Check here:

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Blue
Weight:
0.50 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
45.0 mm
Conduit ID:
38.0 mm
Static Bend Radius:
36 mm
Dynamic Bend Radius:
90 mm
