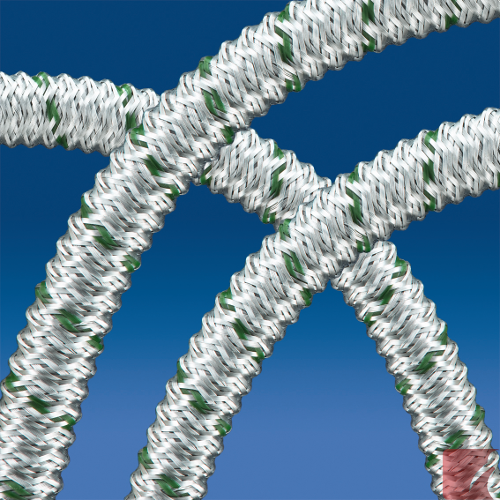

OD 27.0 mm Protective plastic liquidtight conduit with galvanized wire braiding for demanding wiring applications

IP 68 - liquid tight & air tight

-25ºC to +90ºC ... 100ºC short term

Also available on a shorter 10 metre coil, click here for part # 4231.101.020

Material:

• helical coiled PVC plastic conduit
• spring steel wire helix with PVC sheathing
• galvanized steel wire braiding
• approved to DIN EN IEC 61386-23

Properties:

• excellent protectiive conduit against hot swarfs and cutting shards
• extremely flexible
• EMC shielding factor
• widely resistant to solvents and acids
• free of silicone and cadmium
• good application temperature range
• suitable for vacuum applications

Applications:

• Excellent cable & wire protection conduit for metal cutting & processing machinery, injection moulding machinery, floor run cabling and abrassive installations.
• Other applications include: EMC & EMI shielding, machine building, cutting and CNC machinery, railway industry, shipbuilding and automation.

Need other conduit sizes? Check here:

Browse other sizes of AIRflex®-KUW-EDU Spiral PVC liquidtight conduit with galvanized wire braiding
