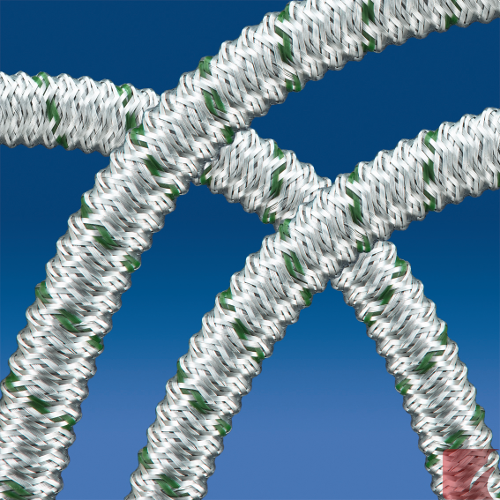

AIRflex-KUW-EDU 37.0 x 45.0 mm Spiral PVC liquidtight conduit with galvanized wire braiding
4230.101.037

Description

OD 45.0 mm Protective plastic liquidtight conduit with galvanized wire braiding for demanding wiring applications

IP 68 - liquid tight & air tight

-25ºC to +90ºC ... 100ºC short term

Also available on a shorter 10 metre coil, click here for part # 4231.101.037

Material:

  • helical coiled PVC plastic conduit
  • spring steel wire helix with PVC sheathing
  • galvanized steel wire braiding
  • approved to DIN EN IEC 61386-23

Properties:

  • excellent protectiive conduit against hot swarfs and cutting shards
  • extremely flexible
  • EMC shielding factor
  • widely resistant to solvents and acids
  • free of silicone and cadmium
  • good application temperature range
  • suitable for vacuum applications

Applications:

  • Excellent cable & wire protection conduit for metal cutting & processing machinery, injection moulding machinery, floor run cabling and abrassive installations.
  • Other applications include: EMC & EMI shielding, machine building, cutting and CNC machinery, railway industry, shipbuilding and automation.

Need other conduit sizes? Check here:

Browse other sizes of AIRflex®-KUW-EDU Spiral PVC liquidtight conduit with galvanized wire braiding

Specifications

Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Silver
Weight:
0.82 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
45.0 mm
Conduit ID:
37.0 mm
Static Bend Radius:
48 mm
Dynamic Bend Radius:
120 mm

Certifications

Alternate SKU Numbers

4230-101-037 | 4230101037 | 4230 101 037 | 4230_101_037 | 4230/101/037 | 4230,101,037 | 4230+101+037
