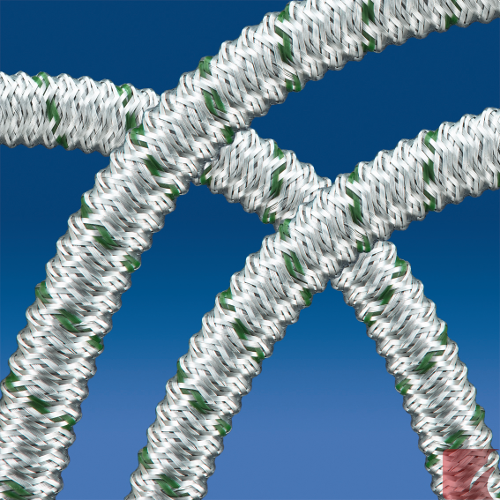

AIRflex-KUW-EDU 14.0 x 19.0 mm Spiral PVC liquidtight conduit with galvanized wire braiding 10 metre coil
4231.101.014

Description

OD 19.0 mm Protective plastic liquidtight conduit with galvanized wire braiding for demanding wiring applications

Special small 10 metre coil

IP 68 - liquid tight & air tight

-25ºC to +90ºC ... 100ºC short term

Also available on a standard 50 metre coil, click here for part # 4230.101.014

Material:

  • helical coiled PVC plastic conduit
  • spring steel wire helix with PVC sheathing
  • galvanized steel wire braiding
  • approved to DIN EN IEC 61386-23

Properties:

  • excellent protectiive conduit against hot swarfs and cutting shards
  • extremely flexible
  • EMC shielding factor
  • widely resistant to solvents and acids
  • free of silicone and cadmium
  • good application temperature range
  • suitable for vacuum applications

Applications:

  • Excellent cable & wire protection conduit for metal cutting & processing machinery, injection moulding machinery, floor run cabling and abrassive installations.
  • Other applications include: EMC & EMI shielding, machine building, cutting and CNC machinery, railway industry, shipbuilding and automation.

Need other conduit sizes? Check here:

Browse other sizes of AIRflex®-KUW-EDU Spiral PVC liquidtight conduit with galvanized wire braiding in 10 metre rolls

Specifications

Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Silver
Weight:
0.22 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
19.0 mm
Conduit ID:
14.0 mm
Static Bend Radius:
22.0 mm
Dynamic Bend Radius:
55.0 mm

Certifications

Alternate SKU Numbers

4231-101-014 | 4231101014 | 4231 101 014 | 4231_101_014 | 4231/101/014 | 4231,101,014 | 4231+101+014
