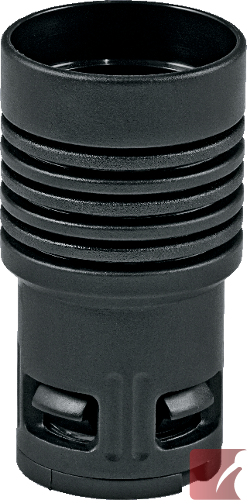

21.2 mm to 15.8 mm OD Conduit Reducing FLEXAquick® adapter fitting

Special fitting that transitions a larger threaded fitting to connect with a smaller diameter conduit

It reduces the conduit connecting end of the conduit fitting, not the threaded end.

AD 1: is the new conduit connection end needed to transition to: 15.8 mm

AD 2: is the conduit diameter of the fitting in need of the transition: 21.2 mm

Features the innovative built-in FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly

NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations

Adapts all FLEXAquick® straight, elbow, T and Y connectors from one conduit size to another of a smaller diameter

Need a different size?:  Browse other RQGR conduit transitioning adapter fittings

Material:

• plastic PA 6 polyamide body, VO acc. to UL94
• internal seal: TPE rubber

Properties:

• IP 68 / IP 69K sealing level
• Temperature range: -40ºC to +120ºC
• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue
