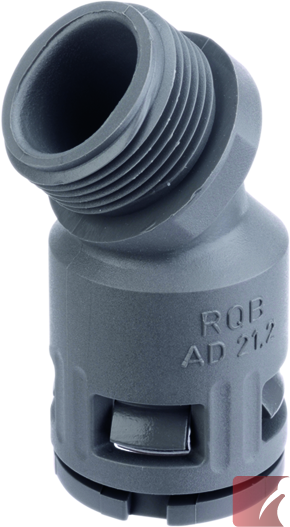

RQB45-M Metric Grey 45 degree Elbow Connector
5100.054.050

Description


M50 x 1.5 mm FLEXAquick® Grey 45° elbow connector for 54.5 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP68
Colour:
Grey
Weight:
0.085 kg
Package quantity:
5

Dimensions:
φ I:
35.50
φ B:
64.00
C:
17.00
D:
92.00
Conduit OD:
54.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5100-054-050 | 5100054050 | 5100 054 050 | 5100_054_050 | 5100/054/050 | 5100,054,050 | 5100+054+050
