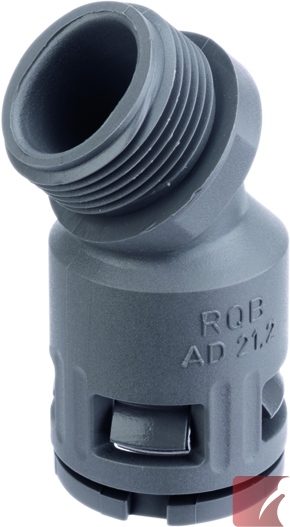

RQB45-M Metric Grey 45 degree Elbow Connector
5100.015.020

Description


M20 x 1.5 mm FLEXAquick® Grey 45° elbow connector, for 15.8 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M20 x 1.5 mm
Sealing Level:
IP68
Colour:
Grey
Weight:
0.013 kg
Package quantity:
50

Dimensions:
φ I:
10.00
φ B:
25.50
C:
12.00
D:
44.50
Conduit OD:
15.8 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5100-015-020 | 5100015020 | 5100 015 020 | 5100_015_020 | 5100/015/020 | 5100,015,020 | 5100+015+020
