LI-M M10 x 1.0 mm Rotating Straight Metal Fitting for SPR AS / VA / PU-F / PVC & FLEXAgraff® AS / VA / PU-F conduits
5010.012.010

Description

M10 x 1.0 mm FLEXA straight connector for 10.0 mm OD conduit, outer thread, made of nickel plated brass

This Flexa conduit fitting features a unique design allowing the threaded fitting body

to rotate & swivel on the conduit end after mounting.

Prevents conduit twisting damage and conduit & fitting separation due to vibration or constant motion.

IP 40 sealing level

-40ºC to +250ºC

Use with the following conduits:

  • SPR, SPR-AS, SPR-VA
  • SPR-PVC, SPR-PA, SPR-PU-AS, SPR-PU-F
  • FLEXAgraff®-AS, FLEXAgraff®-VA, FLEXAgraff®-PU-F

Available also in a small 10 piece pack: Check here for LI-M small pack part # 5010.712.010

Construction:

  • Connector Body: nickel-plated brass
  • Ferrule: polished brass
  • Locking ring: spring steel

Properties:

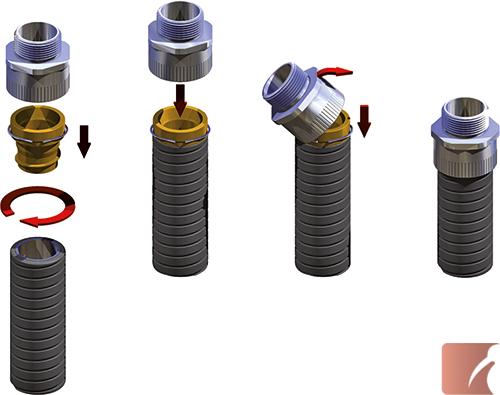

  • the integrated "screw-in type" ferrule twists easily into the conduit end
  • the ferrule allows the fitting body to "snap & lock" into place; the connector can then rotate & swivel around the conduit end after it is mounted
  • covers the end of the cut conduit completely, no exposed burrs
  • good vibration and tension tolerance



Specifications

Connector Thread:
M10 x 1.0 mm
Sealing Level:
IP 40
Colour:
Silver
Weight:
0.0166 kg
Package quantity:
50

Dimensions:
φ I:
6.00
φ B:
17.00
C:
10.00
D:
32.00
Conduit OD:
10.0 mm
