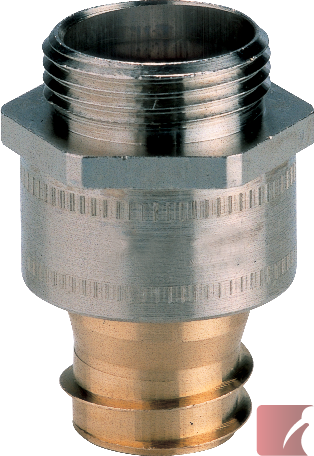

M32 x 1.5 mm FLEXA straight connector for 36.0 mm OD conduit, outer thread, made of nickel plated brass

Special small 2 piece pack.

This Flexa conduit fitting features a unique design allowing the threaded fitting body

to rotate & swivel on the conduit end after mounting.

Prevents conduit twisting damage and conduit & fitting separation due to vibration or constant motion.

IP 40 sealing level

-40ºC to +250ºC

Use with the following conduits:

• SPR, SPR-AS, SPR-VA
• SPR-PVC, SPR-PA, SPR-PU-AS, SPR-PU-F
• FLEXAgraff®-AS, FLEXAgraff®-VA, FLEXAgraff®-PU-F

Available also in the standard 25 piece pack: Check here for LI-M standard pack part # 5010.012.032

Construction:

• Connector Body: nickel-plated brass
• Ferrule: polished brass
• Locking ring: spring steel

Properties:

• the integrated "screw-in type" ferrule twists easily into the conduit end
• the ferrule allows the fitting body to "snap & lock" into place; the connector can then rotate & swivel around the conduit end after it is mounted
• covers the end of the cut conduit completely, no exposed burrs
• good vibration and tension tolerance
