US-M M32 x 1.5 Straight Metal Fitting for FLEXAgraff®-CU, SPR CU / EDU, AIRflex® EDU, FLEXAhightemp® conduits
5011.328.032

Description

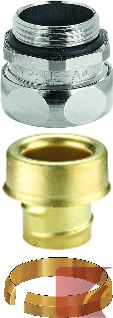

M32 x 1.5 mm FLEXA straight connector for 36.0 mm OD conduit, outer thread, made of nickel plated brass

IP 40 sealing level

-40ºC to +125ºC

Use with the following Flexa conduits:

  • FLEXAgraff®-CU-AS
  • AIRflex®-KUW-EDU
  • SPR-CU-AS, SPR-EDU-AS
  • FLEXAhightemp®

Construction:

  • Body and compression nut: nickel plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic
  • Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties:

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • good vibration and tension tolerance

Specifications

Connector Thread:
M32 x 1.5 mm
Sealing Level:
IP 40
Colour:
Silver
Weight:
0.113 kg
Package quantity:
25

Dimensions:
φ I:
27.50
φ B:
48.00
C:
13.00
D:
43.00
Conduit OD:
36.0 mm

Datasheet

Certifications

Alternate SKU Numbers

5011-328-032 | 5011328032 | 5011 328 032 | 5011_328_032 | 5011/328/032 | 5011,328,032 | 5011+328+032
