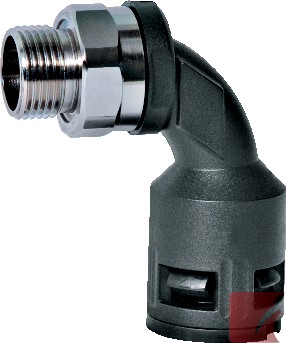

M32 x 1.5 mm FLEXAquick® 90° elbow connector for 34.5 mm OD conduit, outer nickel-plated brass swivel thread

Thread length: 14.0 mm, standard

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Use with all ROHRflex® corrugated plastic conduits

Innovative features:

• turnable, swivelling nickel-plated brass outer thread, swivels both post & pre-installation
• Smooth bore, with gentle 90° bend, elbow conduit fitting
• Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

• plastic PA 6 polyamide body, VO acc. to UL94
• nickel plated brass outer thread
• fitting includes one each of: "OR type" O-ring and "FRH type" flat sealing ring

Properties:

• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• excellent for high mechanical stress
• impact-resistant
• high-torque tolerant on threaded connection
