RQBK45DR-M M40 x 1.5 mm Metric Swivelling Metal Thread FLEXAquick 45 degree Elbow Connector TL=17.0 mm

Part#: 5131.042.240

Description

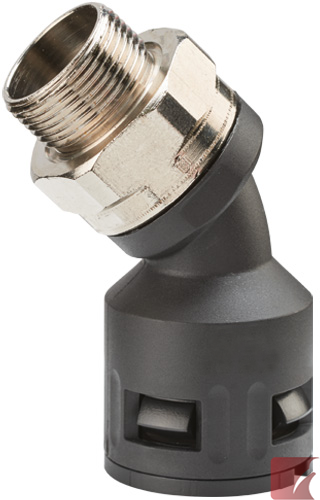

M40 x 1.5 mm FLEXAquick® 45° elbow connector for 42.5 mm OD conduit, with swivelling nickel-plated brass thread

Thread length, TL = 17.0 mm, standard

Features a unique, turnable, swivelling, nickel-plated brass outer thread. Swivels both post & pre-installation.

Features the innovative built-in FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly

NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations

Need a different size?:

Browse other RQBK45DR-M, swivellling Metric metal thread 45° fittings

Material:

plastic PA 6 polyamide body, VO acc. to UL94
internal seal: TPE rubber
nickel-plated brass outer thread
fitting includes one each of: "OR type" O-ring and "FRH type" flat sealing ring, for outer thread sealing

Properties:
