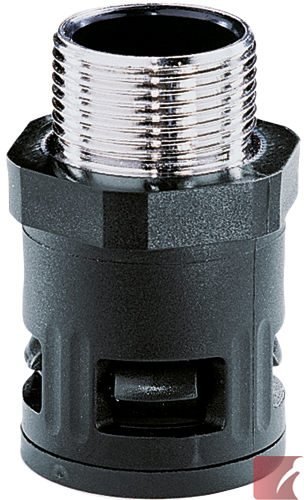

RQGK-M M20 x 1.5 Metric Metal Thread FLEXAquick straight connector for 21.2 mm OD conduit, thread length = 12.0 mm
5107.021.220

Description


RQGK-M M20 x 1.5 Metric FLEXAquick® straight connector for 21.2 mm OD conduit, thread length = 12.0 mm, nickel-plated brass thread

Thread length: 12.0 mm, standard

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Use with all ROHRflex® corrugated plastic conduits

Innovative features:

  • Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!
  • Smooth inner bore

Material:

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant
  • high-torque tolerant on threaded connection

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue





Specifications

Connector Thread:
M20 x 1.5
Sealing Level:
IP68
Colour:
Black
Weight:
0.024 kg
Package quantity:
25

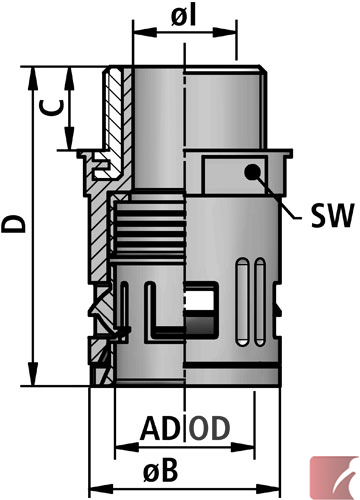

Dimensions:
φ I:
15.00
φ B:
29.50
C:
12.00
D:
50.00
Conduit OD:
21.2 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL3 for R22 / R 23
45545-2
HL3 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5107-021-220 | 5107021220 | 5107 021 220 | 5107_021_220 | 5107/021/220 | 5107,021,220 | 5107+021+220
