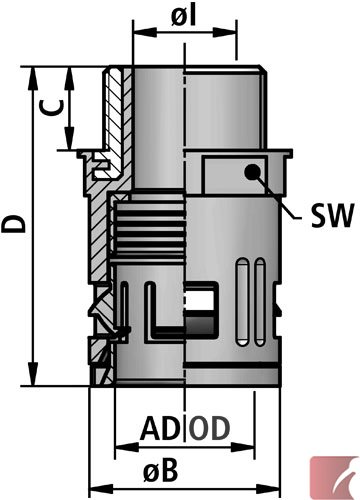

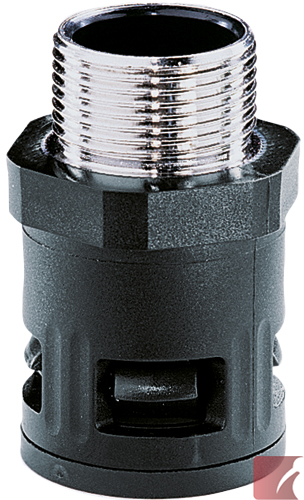

RQGK-M M25 x 1.5 Metric FLEXAquick® straight connector for 28.5 mm OD conduit, thread length = 7.0 mm, nickel-plated brass thread

Thread length: 7.0 mm, short

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Use with all ROHRflex® corrugated plastic conduits

Innovative features:

• Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!
• Smooth inner bore

Material:

• plastic PA 6 polyamide body, VO acc. to UL94
• nickel-plated brass outer thread
• fitting includes one each of: "OR-M" buna-N sealing O-ring and "FRH-M" green Centellen® flat sealing washer

Properties:

• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• excellent for high mechanical stress
• impact-resistant
• high-torque tolerant on threaded connection
