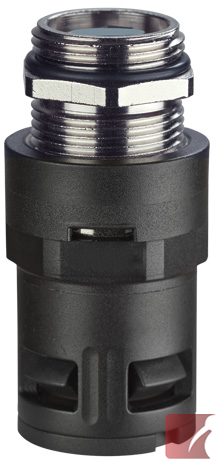

RQGKZE-M M16 x 1.5 mm Metric Metal Thread with EMC Bonding Strain Relief FLEXAquick Connector for 13.0 mm OD Conduit
5111.013.216

Description

M16 x 1.5 mm FLEXAquick® metal thread straight connector with built-in EMC bonding strain-relief clamp for 13.0 mm OD conduit

Conduit fitting shields EMI by metallic braid bonding through EMC grounding and cable strain-relief system.

NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations

The FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly

Cable clamping range: 5.0 - 8.5 mm

Need a different size?:  Browse other RQGKZE-M Metric metal threaded EMI shielding corrugated conduit fittings

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass strain relief & thread
  • nickel plated brass EMC protection shielding contact
  • two piece strain relief system with sealing grommet
  • includes rubber O-ring for outer thread sealing

Properties:

  • EMC protection with shielding contact for bonding metallic braiding
  • EMC shielding and cable strain relief in one package
  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • high mechanical stress tolerance
  • impact-resistant

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M16 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.0344 kg
Package quantity:
50

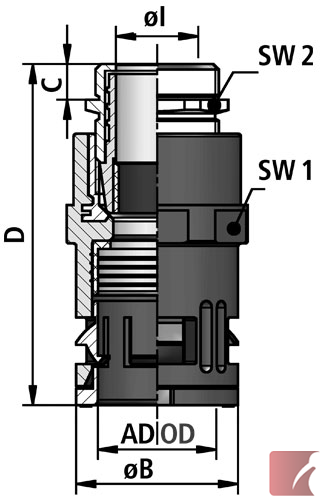

Dimensions:
φ I:
8.50
φ B:
24.00
C:
5.00
D:
55.00
Conduit OD:
13.0 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL3 for R22 / R 23
45545-2
HL3 Rated
NFF 16-
101/102 I3
EN 50289-1

Alternate SKU Numbers

5111-013-216 | 5111013216 | 5111 013 216 | 5111_013_216 | 5111/013/216 | 5111,013,216 | 5111+013+216
