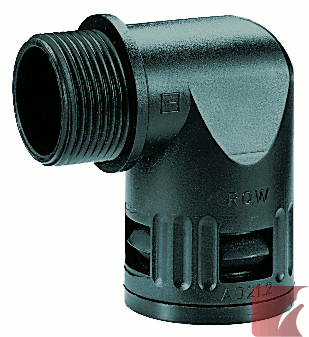

RQW-M M16 x 1.5 mm Metric FLEXAquick 90 degree elbow connector for 13.0 mm OD conduit
5020.036.216
Description
M16 x 1.5 mm Metric black FLEXAquick® 90° elbow connector for 13.0 mm OD conduit NW 10, outer thread
NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.
Features the innovative built-in FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly
Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations
Need a different size?: Browse other RQW-M Metric threaded 90° elbow fittings
Material:
- plastic PA 6 polyamide nylon body, VO acc. to UL94
- internal seal: TPE rubber
Properties:
- IP 68 / IP 69K sealing level
- Temperature range: -40ºC to +120ºC
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Quick Link to our: Short Form FLEXAquick® Catalogue
Quick Links to other Products:
- Browse RQG-M, Metric threaded straight fittings
- Browse RQG-N, NPT threaded straight fittings
- Browse RQW-N, NPT threaded 90° elbow fittings
Specifications
Connector Thread:
M16 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.0072 kg
Package quantity:
50
Dimensions:
φ I:
12.00
φ B:
20.00
C:
12.00
D:
36.50
Conduit OD:
13.0 mm
Certifications
CSA 22.2
# 227.3-05
UL 1696
#E86359
E162 & 662
SMP800C
45545-2
HL2 Rated
NFF 16-
101/102 I3
