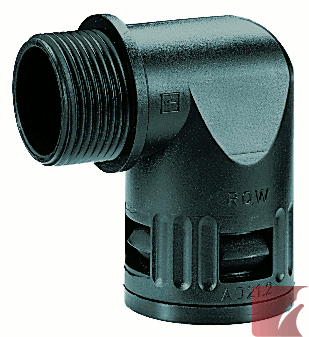

M20 x 1.5 mm Metric black FLEXAquick® 90° elbow connector for 21.2 mm OD conduit NW 17, outer thread

NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.

Features the innovative built-in FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations.

Need a different size?:  Browse other RQW-M Metric threaded 90° elbow fittings

Material:

• plastic PA 6 polyamide nylon body, VO acc. to UL94
• internal seal: TPE rubber

Properties:

• IP 68 / IP 69K sealing level
• Temperature range: -40ºC to +120ºC
• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue
